Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | Cavity Type | Max Feed Size (mm) | Minimum Discharge Size (mm) | Processing Capacity (t/h) | Motor Power (kW) | Machine Weight (t) |
|---|---|---|---|---|---|---|
| ZYS36B | Fina | 85 | 9-22 | 45-91 | 75 | 14.5 |
| Coarse | 150 | 13-38 | 59-163 | |||
| Extra Coarse | 152 | 25-38 | 118-163 |
*Note: The processing capacity of the ZYS36B cone crusher may vary with different materials and feeding sizes.
This construction sand production line has an annual output of 3 million tons of high-quality sand aggregate, 1 million tons of machine-made sand, 1.2 million tons of dry mixed mortar, 1 million cubic meters of concrete and other building materials.
Work Process The raw materials (bulk limestone)are first sent by the ZGC vibrating feederto PCZ1615 heavy hammer crusher for primary crushing. Then the materialsare processed by two sets of 3YKZ2470 vibrating screen for gradation. Those with qualifie
Configuration List Equipment Model Unit(s) Vibrating Feeder ZG2038 1 Heavy Hammer Crusher PCZ1815 1 Hammer Crusher XPC1216 1 Vibrating Screen 3YKZ3070 2 Vibrating Screen 2YKZ3070 2 800TPH Gravel Aggregates Production Process The bulk limest

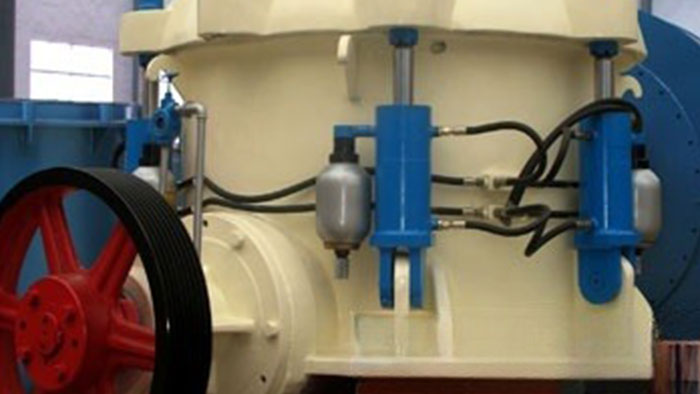

The ZYS36B cone crusher can meet the crushing requirements of different production scenarios through its unique multi - cavity design.
Feed and Discharge: The maximum feed size is 85mm, and the minimum discharge size is 9 - 22mm, which can produce products with fine particle sizes.
Processing Capacity: 45 - 91 tons per hour, balancing particle size and output.
Feed and Discharge: The maximum feed size is 150mm, and the minimum discharge size is 13 - 38mm, producing medium - sized products.
Processing Capacity: 59 - 163 tons per hour, with a large throughput, suitable for large - scale production.
Feed and Discharge: The maximum feed size is 152mm, and the minimum discharge size is 25 - 38mm, focusing on extra - coarse material crushing.
Processing Capacity: 118 - 163 tons per hour, capable of quickly processing large - sized materials.
Power Support: Equipped with a 75kW motor, it provides stable power for the efficient operation of each cavity type and reduces production interruptions.
Machine Weight: The whole machine weighs 14.5 tons. It not only ensures stable operation but also facilitates installation, debugging, and movement, with strong site adaptability.
The ZYS36B cone crusher, with its diverse cavity types, stable power, and moderate weight, provides a comprehensive and efficient solution for industrial crushing and is a reliable crushing equipment.
