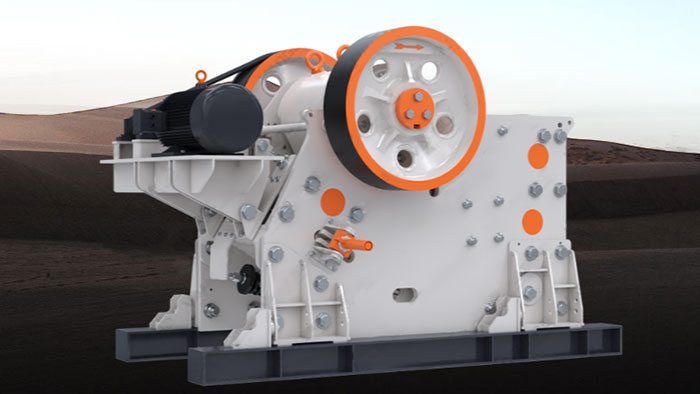

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | 6CX125 |
| Feed opening | 1250 x 950 mm |
| Max feed size | ≤800 mm |
| CSS Range | 100 - 250 mm |
| Capacity(by hour) | 290 - 845 tph |
| Motor power | 160(132) kW |
| Weight | 36,700 kg |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the 6CX125 jaw crusher may vary with different materials and feeding sizes.
50TPH Sand Production Line Layout Main Equipment Name Model Power(kw) Set Dual Rotor sand Maker ZSJ0808 2*55kw 1 Vitrating Screen 3YKZ2060 30kw 1 Sand Production Process After processing of primary crusher the crushed limestone is conveyed
The above pictures show production site of hard rock crusher plant. Unlike traditional crushing plant it adopts only one set of hard rock crusher to complete the crushing process which greatly reduces the equipment investment and increase
The raw materials can be exploited in the place near production site which saves a lot of transport cost. All the equipment manufactured by us can right meet the requirements of the customer. With reasonable configuration such production
Length of fixed jaw plate ：2000 mm
Maximum repair part weight ：12960kg(without flywheel, movable jaw assembly)
Total weight：36700kg(excluding motor and accessories)
| Closed side setting (mm) | Capacity (t/h) |
|---|---|
| 100 | 290-380 |
| 125 | 305-455 |
| 150 | 415-535 |
| 175 | 470-610 |
| 200 | 530-690 |
| 225 | 590-770 |
| 250 | 650-845 |
