C6X125

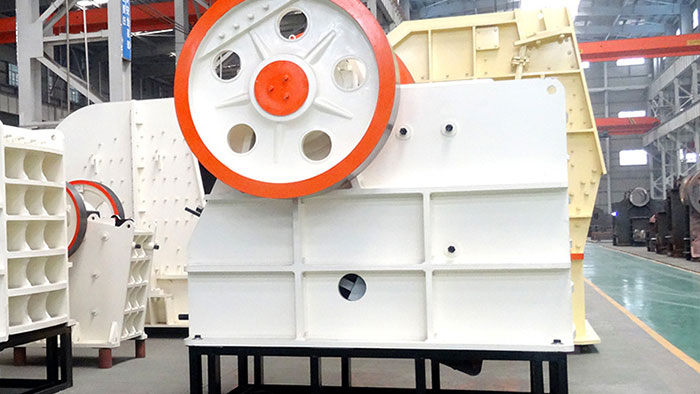

C6X125 Jaw Crusher

The C6X125 jaw crusher refers to a jaw crusher with a feed opening length of 1250mm, capable of producing 240-760 tons per hour. Depending on the discharge opening size, the output varies. When the discharge opening is set to 200mm, the hourly output is 240-340 tons; when adjusted to 300mm, the hourly output can reach 470-760 tons.

Technical Parameters:

• Feed Opening Length (mm): 1250
• Feed Opening Width (mm): 950
• Motor Power (Kw): 160
• Speed (rpm): 220
• Discharge Opening Range (mm) & Capacity (t/h):
  • 200 mm: 240-340 t/h
  • 225 mm: 280-410 t/h
  • 250 mm: 340-480 t/h
  • 275 mm: 370-550 t/h
  • 300 mm: 420-620 t/h
  • 300 mm: 470-690 t/h

Features:

• Optimized Crushing Chamber: The crushing chamber has been optimized to enhance material throughput and crushing efficiency.
• Modular Frame Design: The frame is designed with detachable side walls and front/rear walls, secured with bolts instead of welding, eliminating stress concentration issues and providing a more compact and reliable structure.
• Double Wedge Adjustment: The wedge block adjustment system allows for easy and safe adjustment of the discharge opening, either mechanically or hydraulically.
• Elastic Limiting Shock Absorption: Elastic limit blocks and rubber shock absorbers effectively absorb peak loads, reducing mutual impact between the crusher and its foundation, enhancing the durability of both.
• Integrated Motor Base: The integrated motor base reduces installation space and ensures stable power transmission.

Applications and Materials: Suitable for industries such as metallurgy, mining, chemical, cement, construction, refractory materials, and ceramics. Capable of processing materials with compressive strengths up to 300MPa, including hard and strongly abrasive rocks and minerals.
