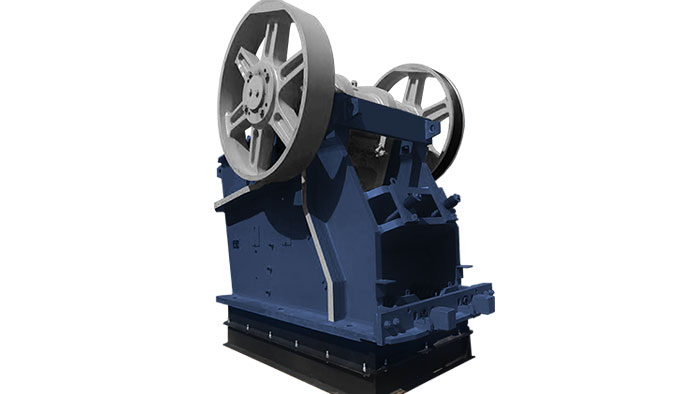

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | ASD4230 |
| Feed opening | 1070×760 mm |
| CSS Range | 65-250 mm |
| Capacity(by hour) | 195-450 tph |
| Motor power | 110 KW |
*Note: The processing capacity of the ASD4230 jaw crusher may vary with different materials and feeding sizes.
Configuration List Equipment Model Unit(s) Vibrating Feeder ZG2038 1 Heavy Hammer Crusher PCZ1815 1 Hammer Crusher XPC1216 1 Vibrating Screen 3YKZ3070 2 Vibrating Screen 2YKZ3070 2 800TPH Gravel Aggregates Production Process The bulk limest
Dingli Mining Corporate was recommended by one of my friends. It is surprise that Dingli machines dont let us down with high production effect fine finished material shape and stable operation.
EPC general contract construction, the first construction is 1500t/h limestone production line, the second cooperation to build a new 3000t/h limestone processing line.

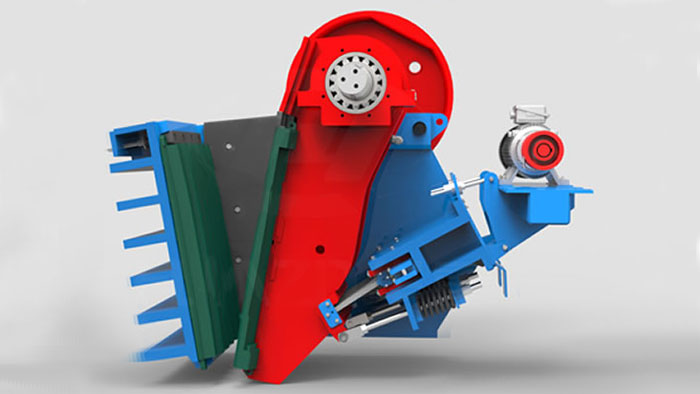

Working Principle:The ASD4230 Jaw Crusher utilizes an electric motor to drive a belt wheel, which rotates the eccentric shaft, causing the movable jaw to perform reciprocating motion, thereby crushing the material that enters the crushing chamber. The crushed material is then discharged via gravity through the outlet.
Advanced Crushing Chamber: An optimized "V" shaped crushing chamber design increases throughput and crushing efficiency.
Intelligent Adjustment: A hydraulic wedge adjustment system for the discharge outlet simplifies adjustment operations.
Integrated Design: The host machine and motor can be installed integrally, saving space and facilitating transportation.
Low Noise Operation: Excellent motion trajectory and balance reduce vibration and noise during operation.
Applications:Widely used in gravel yards, concrete sand making, dry mortar, manufactured sand, power plant desulfurization, quartz sand industries, etc.
