Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | C120 |
| Feed opening | 870 x 1200 mm |
| Max feed size | 740 mm |
| CSS Range | 100 - 200 mm |
| Capacity(by hour) | 260 - 650 t/h |
| Motor power | 160 kW |
| Dimensions | 3850 x 2800 x 3100 mm |
| Rotation speed of eccentric shaft | 230 r/min |
*Note: The processing capacity of the C120 jaw crusher may vary with different materials and feeding sizes.
The operating process of this 400tph production line is crushed by PCZ heavy hammer crusher shaped by PCX shaping hammer crusher graded by vibrating screen and then sent qualified stone into finished material stockpile.
Machine: ZGC1538 vibrating feeder + PCZ1615 heavy hammer crusher + 4*YKZ2460 vibrating screen + ZSJ 1218 dual rotor sand maker
Work Process The large limestones are first crushed by primary crusher of PCZ hammer type then the crushed stones are processed by two sets of 3YKZ2470 vibrating screen for classification of materials in various sizes. At last the curshed stone th

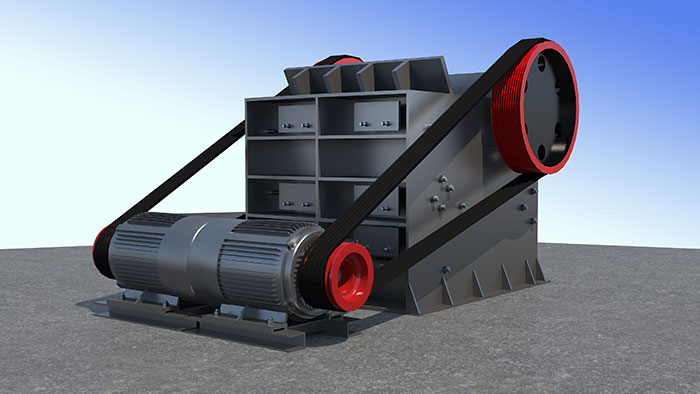

The C120 Jaw Crusher is a powerful and reliable crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
Feed Opening Size: 870 x 1200 mm Maximum Feed Size: 740 mm Discharge Opening Adjustment Range: 100 - 200 mm Production Capacity: 260 - 650 t/h Speed: 230 r/min Motor Power: 160 kW Dimensions: 3850 x 2800 x 3100 mm
The C120 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The C120 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The C120 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
