Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | C125 |
| Feed opening | 950 x 1250 mm |
| Max feed size | 800 mm |
| CSS Range | 100 - 250 mm |
| Capacity(by hour) | 230 - 760 t/h |
| Motor power | 160 kW |
| Dimensions | 4100 x 2800 x 3440 mm |
| Rotation speed of eccentric shaft | 220 r/min |
*Note: The processing capacity of the C125 jaw crusher may vary with different materials and feeding sizes.
As one of the biggest cement companies in Yiyang Hunan, Dongfang Cement Corporate built a 500-700tph production line by jointly cooperated with Zhongyu Dingli.
Work Process The raw materials (bulk limestone)are first sent by the ZGC vibrating feederto PCZ1615 heavy hammer crusher for primary crushing. Then the materialsare processed by two sets of 3YKZ2470 vibrating screen for gradation. Those with qualifie
Through primary crusher the unqualified aggregates will be returned to the crusher for a repeated crushing so as to obtain the finished material with sound grain shape. This gravel production line will be reformed by adding bag filter.

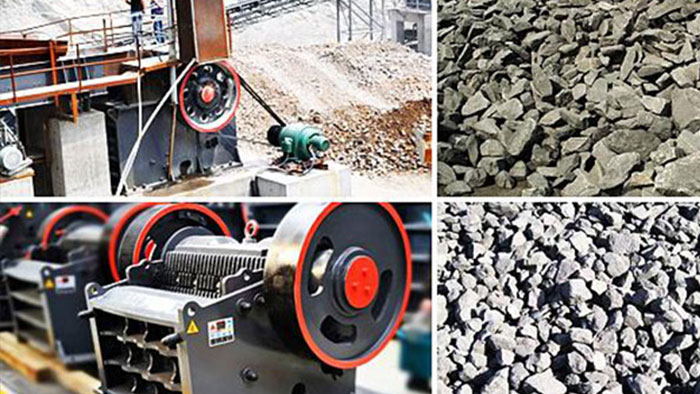

The C125 Jaw Crusher is a high-capacity and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
Feed Opening Size: 950 x 1250 mm Maximum Feed Size: 800 mm Discharge Opening Adjustment Range: 100 - 250 mm Production Capacity: 230 - 760 t/h Speed: 220 r/min Motor Power: 160 kW Dimensions: 4100 x 2800 x 3440 mm
The C125 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The C125 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The C125 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
