Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | C96 |
| Feed opening | 930 x 580 mm |
| Motor power | 90 kW |
| Weight | 11,870 kg |
| Rotation speed of eccentric shaft | 330 rpm |
*Note: The processing capacity of the C96 jaw crusher may vary with different materials and feeding sizes.
Seen from the pics the whole stone crushing line adopts fully-closed mode. Compared with previously open-pit operation it is more eco-friendly. The feed silo production process and discharge silo are also enclosed by the closing plate to
All the equipment has been equipped with dust-proof facility and observation device so as to timely observe the abnormal situation and make adjustment.
Featured by low investment and fast recovery of cost this production line can produce cubic stone with sound compression resistance far beyond customer expectation so it is warmly welcomed by the old and new customers.

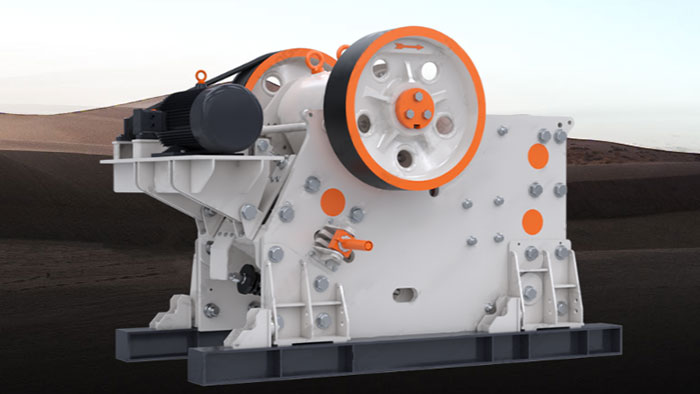

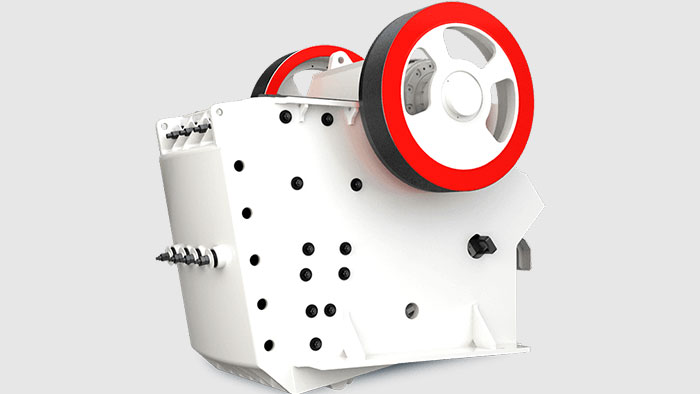

For moderate-sized feed materials, the C96 jaw crusher provides a balance between reliability and durability. Powered by a 90 kW motor, it operates at 330 rpm and weighs 9,759 kg as a standalone unit, functioning at 11,870 kg when active. The feed opening measures 930 x 580 mm, making it ideal for a wide range of applications.
Motor Power: 90 kW
Speed: 330 rpm
Weight: 9,759 kg (crusher only); 11,870 kg (operational)
Feed Opening Dimensions: 930 x 580 mm
The C96 incorporates a modular, non-welded frame structure that combines hot-rolled steel side plates and a high-quality cast steel frame, secured with precision bolts. This configuration resists wear better than welded frames, especially under shock loads. The swing jaw assembly is constructed from high-grade cast steel and powered by two large flywheels. The eccentric shaft is forged for strength, and four large spherical roller bearings ensure smooth operation.
The C96 is well-suited for quarries and mines that process moderate-sized materials. Its robust design and efficient operation make it a reliable choice for consistent output in various industrial settings, including road construction and aggregate production.
