Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | C160 |
| Feed opening | 1200 x 1600 mm |
| Max feed size | 1020 mm |
| CSS Range | 150 - 300 mm |
| Capacity(by hour) | 410 - 1150 t/h |
| Motor power | 250 kW |
| Dimensions | 5700 x 3650 x 3550 mm |
| Rotation speed of eccentric shaft | 220 r/min |
*Note: The processing capacity of the C160 jaw crusher may vary with different materials and feeding sizes.
It is seen at the production site that the stone with large diameter is entering into the crusher through the feed opening. As for the material with the particle size not exceeding 1.6m we adopt the crusher with large hourly capacity.
2500 Ton/Day Gravel Aggregate Production Process Configuration List Equipment Model Unit(s) Vibrating Feeder ZG1038 1 Heavy Hammer Crusher PCZ1510 1 Hammer Crusher XPC0808 1 Vibrating Screen 2YKQ2060 2 The bulk limestone is evenly fed into
In the production site the material shape can be effectively controlled by each process that has better shape than natural sand. It has a bright future with meeting the demand of sand size gradation and crushing index.

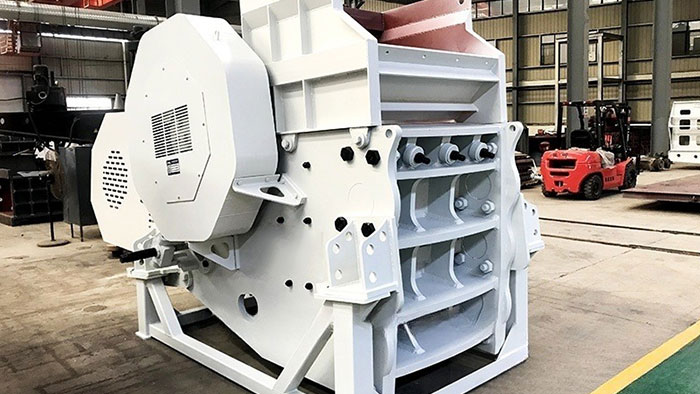

The C160 Jaw Crusher is a high-capacity and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
The C160 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The C160 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The C160 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
