Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | C106 |
| Feed opening | 700 x 1060 mm |
| Max feed size | 600 mm |
| CSS Range | 70 - 200 mm |
| Capacity(by hour) | 140 - 420 t/h |
| Motor power | 110 kW |
| Dimensions | 3230 x 2440 x 2590 mm |
| Rotation speed of eccentric shaft | 310 r/min |
*Note: The processing capacity of the C106 jaw crusher may vary with different materials and feeding sizes.
The use of Zhongyu Dingli EPCO general contracting, more worry, Zhongyu Dingli has a full set of sand and stone processing equipment, as well as design institute design production line, mapping, civil engineering, installation, operation, after-sales and so on are very professional.
This whole aggregates production line adopts modular assembly mode. Each steel structure is assembled in the workshop before its delivery to the production site which saves a lot of time required for assembly.
At the production site it is seen that the material can be crushed into sound grain shape after successively crushing of large heavy hammer crusher and shaping crusher. Our shaping crusher has sound effect in optimizing grain shape.

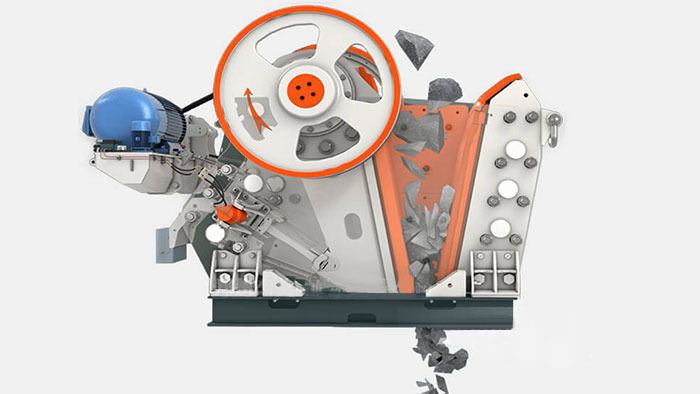

The C106 Jaw Crusher is an advanced and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
The C106 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The C106 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The C106 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
