Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | ZXC106 |
| Feed opening | 1100 x 630 mm |
| Max feed size | 530 mm |
| CSS Range | 110 - 170 mm |
| Capacity(by hour) | 170 - 330 tph |
| Motor power | 110 kW |
| Dimensions | 3346 x 2111 x 2376 mm |
| Weight | 18,700 kg |
| Rotation speed of eccentric shaft | 280 rpm |
*Note: The processing capacity of the ZXC106 jaw crusher may vary with different materials and feeding sizes.
As a centralized area of limestone Guangan has been established many gravel production lines and concentrate many huge stone production lines.
The technician is conducting the commissioning of all the associated equipment which greatly reduces the possibility of failure in the future operation and improve follow-up production efficiency.
Investment advantage: heavy hammer crusher replaces the traditional combination of jaw crusher and impact crusher. It is thus featured by small investment and fast recovery of cost.

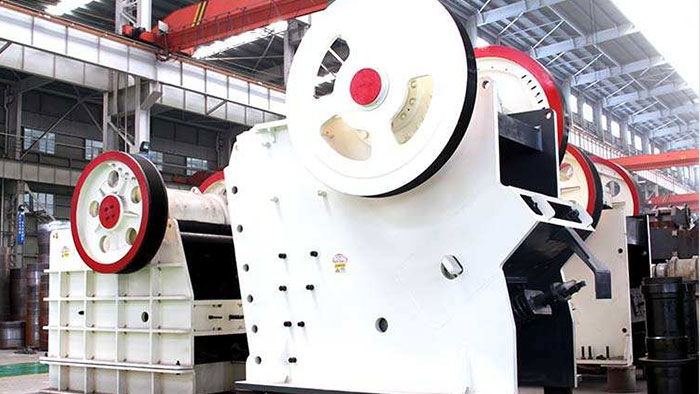

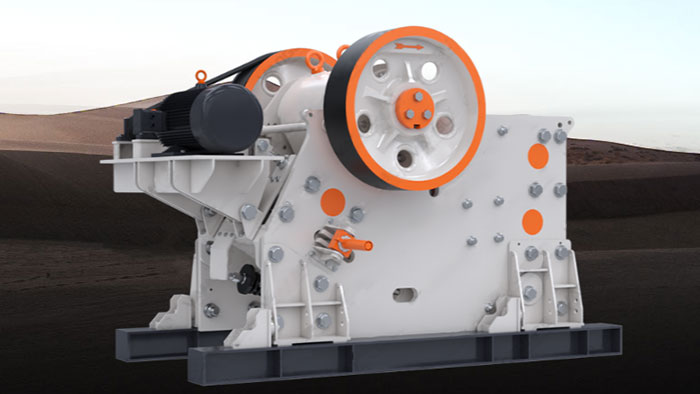

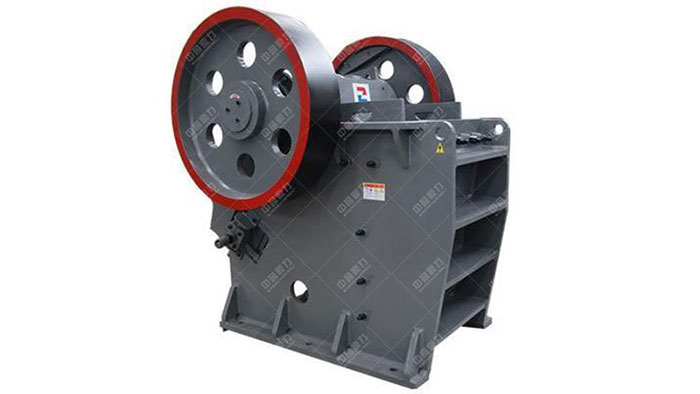

The ZXC106 Jaw Crusher is renowned for its versatility and excellent crushing performance in the mining, smelting, construction, highway, railway, water conservancy, and chemical industries. With a feeding port size of 1100 x 630 mm, it can process materials up to 530 mm. The ZXC106 Jaw Crusher is suitable for handling a wide range of materials including river pebbles, basalt, granite, iron ore, limestone, calcium carbide, shale, bluestone, iron ore, and copper ore.
The ZXC106 Jaw Crusher uses high-strength cast steel structure and an optimized movable jaw plate design, enhancing the overall mechanical strength of the machine. Equipped with a 110 kW motor and a 280 rpm eccentric shaft rotation speed, the crusher can adjust the discharge opening from 110 - 170 mm. This design not only improves the load-bearing capacity of the equipment but also extends its service life.
