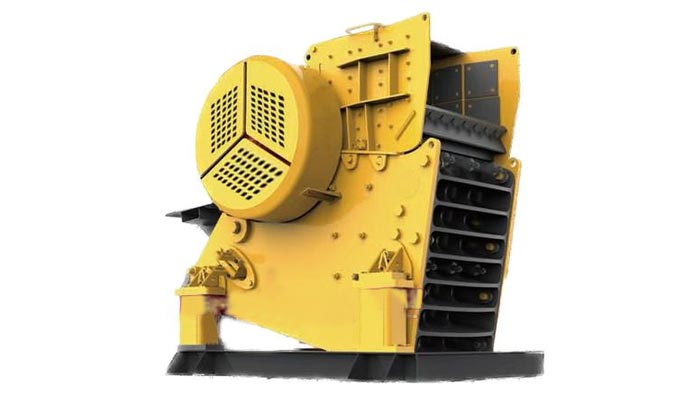

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | 6CX106 |
| Feed opening | 1060 x 700 mm |
| Max feed size | ≤650 mm |
| CSS Range | 70 - 200 mm |
| Capacity(by hour) | 155 - 580 tph |
| Motor power | 110 kW |
| Weight | 19000 kg |
| Rotation speed of eccentric shaft | 280 rpm |
*Note: The processing capacity of the 6CX106 jaw crusher may vary with different materials and feeding sizes.
In the production site the material shape can be effectively controlled by each process that has better shape than natural sand. It has a bright future with meeting the demand of sand size gradation and crushing index.
Nanshui Building Materials Co., Ltd. and Zhongyu cooperate to build a new 1500 tons of sand and stone processing production line, integrate environmental protection design, and install sewage treatment devices, will pollute the environment, and vigorously promote the smooth progress of local green mine construction work.
The 200t/h stone production line configuration is PCZ1510 heavy hammer crusher ZG0938 vibrating feeder 2YK1560 vibrating screen*2 sets.
Length of fixed jaw plate ：1450 mm
Maximum repair part weight ：7800kg(without flywheel, movable jaw assembly)
Total weight：19000kg(excluding motor and accessories)
| Closed side setting (mm) | Capacity (t/h) |
|---|---|
| 70 | 155-200 |
| 80 | 175-230 |
| 90 | 200-260 |
| 100 | 220-290 |
| 125 | 280-365 |
| 150 | 335-435 |
| 175 | 390-510 |
| 200 | 445-580 |
