Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S106 |
| Feed opening | 700 x 1060 mm |
| Max feed size | 600 mm |
| CSS Range | 70 - 200 mm |
| Capacity(by hour) | 140 - 420 t/h |
| Motor power | 110 kW |
| Dimensions | 3230 x 2440 x 2590 mm |
| Rotation speed of eccentric shaft | 310 rpm |
*Note: The processing capacity of the J6S106 jaw crusher may vary with different materials and feeding sizes.
800-1000TPH Gravel Production Line Layout Configuration List Equipment Model Set(s) Vibrating Feeder ZG1538 1 Heavy Hammer Crusher PCZ1615 1 Hammer Crusher XPC1220 1 Vibrating Screen 3YK3070 2 Vibrating Screen 3YK2460 2 Vibrating Screen 2YK
Four stone crusher plants take initiative to build a large limestone crushing line with the hourly capacity of 4000 ton the scale of which is rare both at home and aborad.
This 2,000 tons of sand and stone production line project is built in the form of EPC general contract, mainly crushing limestone, the use of hammer crusher as the main crushing equipment, the total investment of the project is $3,508,2303.0830, the annual output value is 6 million tons.

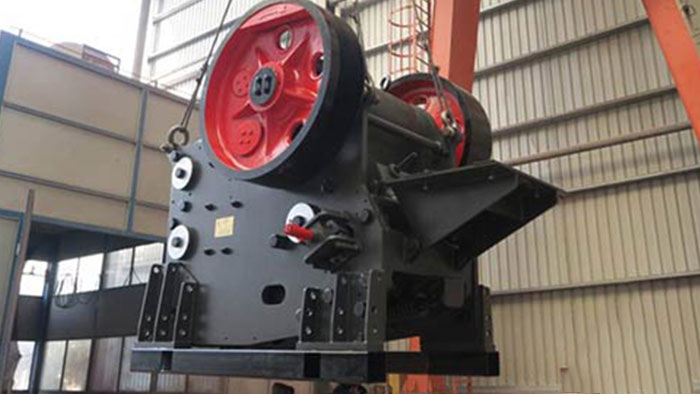

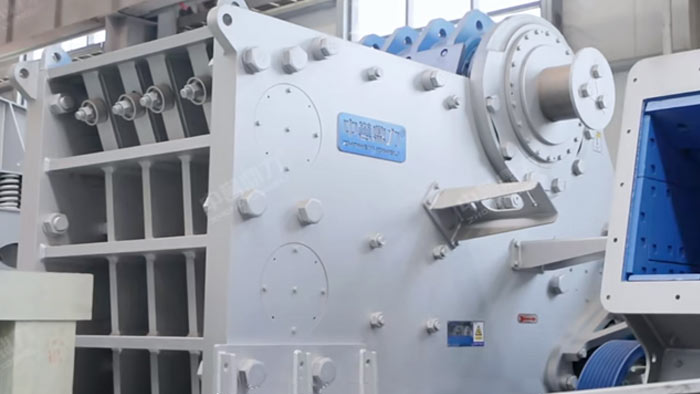

J6S106 European Jaw Crusher: Efficient Crushing, Intelligent Control
J6S106 European Jaw Crusher is an advanced device that combines efficient crushing with intelligent control, suitable for the coarse and medium crushing of various ores and rocks. This model has a feeding size of 700 x 1060 mm, capable of handling materials with a maximum input size of 600 mm. The output size can be adjusted between 70 - 200 mm, with a capacity ranging from 140 - 420 t/h. It operates at a power of 110 kW, a rotational speed of 310 rpm, and has an overall dimension of 3230 x 2440 x 2590 mm.
The J6S106 European Jaw Crusher employs advanced moving jaw casting technology, with the moving jaw assembly made from high-quality cast steel, ensuring the stability and durability of the equipment. The symmetrical “V”-shaped cavity design, combined with a large inclination angle, large stroke, and reasonable rotational speed, not only increases feed particle size but also boosts production and reduces jaw plate wear. The hydraulic wedge-type discharge opening adjustment device provides quick and accurate discharge opening adjustments, enhancing the intelligence level of the equipment.
The modular design of the entire machine makes it easy to disassemble and transport, adapting to various working environments. Whether used in mining, construction material processing, or urban construction waste recycling, the J6S106 European Jaw Crusher provides efficient and reliable crushing solutions.
