Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S160 |
| Feed opening | 1200 x 1600 mm |
| Max feed size | 1020 mm |
| CSS Range | 150 - 300 mm |
| Capacity(by hour) | 410 - 1150 t/h |
| Motor power | 250 kW |
| Dimensions | 5700 x 3650 x 3550 mm |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the J6S160 jaw crusher may vary with different materials and feeding sizes.
From this picture PCZ1308 hammer crusher of Xinxiang Dingli as the secondary crushing machine can crush and shape stone into high quality finished material with higher value than other ordinary stone.
Although there are only several sets of mining equipment adopted in this production line the capacity can reach 300 ton per hour. It mainly lies in Dingli’s PCZ 1512 heavy hammer crusher with the hourly capacity of 320 ton.
This production line has ZG1538 vibrating feeder PCZ1615 heavy hammer crusher 3YKZ2670 vibrating screen*2 2YKZ2670vibrating screen*2

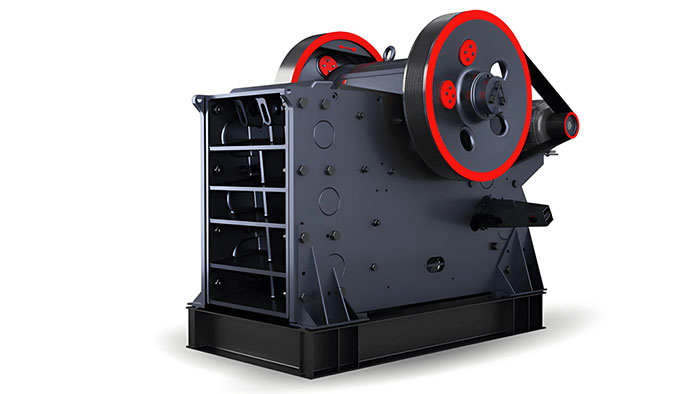

J6S160 European Jaw Crusher: Ultra-Large Capacity, Efficient Crushing
J6S160 European Jaw Crusher is an ultra-large capacity, high-efficiency crushing equipment offered by Zhongji Industry, suitable for the coarse and medium crushing of various ores and rocks. This model has a feeding size of 1200 x 1600 mm, capable of handling materials with a maximum input size of 1020 mm. The output size can be adjusted between 150 - 300 mm, with a capacity ranging from 410 - 1150 t/h. It operates at a power of 250 kW, a rotational speed of 220 rpm, and has an overall dimension of 5700 x 3650 x 3550 mm.
The J6S160 European Jaw Crusher employs high-quality cast steel moving jaw assembly, ensuring the stability and durability of the equipment. The symmetrical “V”-shaped cavity design, combined with a large inclination angle, large stroke, and reasonable rotational speed, not only increases feed particle size but also boosts production and reduces jaw plate wear. The hydraulic wedge-type discharge opening adjustment device provides quick and accurate discharge opening adjustments, enhancing the intelligence level of the equipment.
The modular design of the entire machine makes it easy to disassemble and transport, adapting to various working environments. Whether used in mining, construction material processing, or urban construction waste recycling, the J6S160 European Jaw Crusher provides efficient and reliable crushing solutions.
