Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | GC160 |
| Feed opening | 1600 x 1200 mm |
| CSS Range | 150 - 300 mm |
| Capacity(by hour) | 520 - 1275 tph |
| Motor power | 250 kW |
| Weight | 71.33 t |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the GC160 jaw crusher may vary with different materials and feeding sizes.
This small gravel aggregates production line built by Dingli has reached our expected hourly capacity.
Equipment configuration: PCZ1512 heavy hammer crusher ZGC1250 vibrating feeder YK1860 vibrating screen*2 sets
This production line added water to reduce powder pollution and have a green production environment.

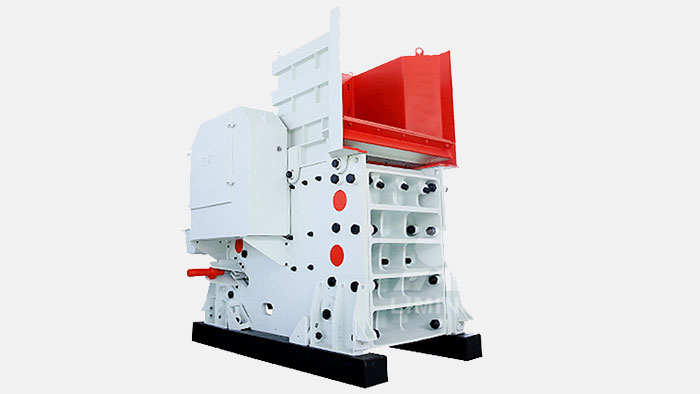

The GC160 European Type Jaw Crusher is a highly efficient and reliable crushing equipment suitable for various materials such as river pebbles, granite, basalt, iron ore, limestone, quartz, coal gangue, and construction waste. This crusher incorporates advanced technologies from Metso's C series and Sandvik's JM(CJ) series jaw crushers, combined with domestic practicalities, using advanced computer technology to ensure outstanding performance and reliability.
The GC160 European Type Jaw Crusher has a 30% higher output compared to traditional PE jaw crushers, thanks to its advanced mainframe vibration reduction system, which ensures smoother operation and lower noise levels. It has a feed size of 1600 x 1200mm, a speed of 220rpm, and a power of 250kW. The output at different closed-side settings (CSS) is as follows: 150mm (520 - 675t/h), 175mm (595 - 675t/h), 200mm (675 - 880t/h), 225mm (750 - 975t/h), 250mm (825 - 1070t/h), 275mm (900 - 1170t/h), 300mm (980 - 1275t/h). The weight of the unit is 71.33 tons.
The GC160 European Type Jaw Crusher uses a bolted connection and non-welded frame structure, providing excellent fatigue strength. The frame components are cast from alloy materials, ensuring the durability and robustness of the equipment. This design ensures high performance and stability during long-term operation, extending the lifespan of the equipment.
