Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | GC3054 |
| Feed opening | 1375 x 760 mm |
| CSS Range | 80 - 200 mm |
| Motor power | 160 kW |
| Rotation speed of eccentric shaft | 260 rpm |
*Note: The processing capacity of the GC3054 jaw crusher may vary with different materials and feeding sizes.
The main equipment of 800-1000tph stone production line of Shanhe Yongqing Huishui City Guizhou Province by Xinxiang Dingli are PCZ1620 hammer crusher PCX1220 hammer crusher ZSJ shaping sand maker vibrating feeder.
At the production site it is seen that by adopting the crusher with hourly capacity of 1200 ton the production process is greatly simplified compared with previous production lines configured with more than one crusher.
Dingli does not make specific equipment configuration until survey of production site for many times and comprehensive knowledge of the material to be crushed.

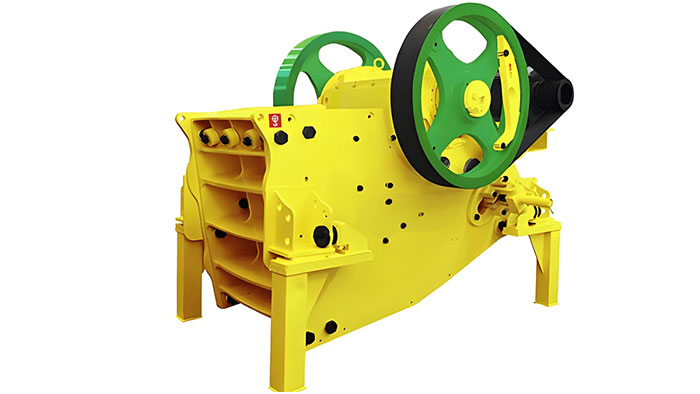

The GC3054 European Type Jaw Crusher is a highly efficient and reliable crushing equipment suitable for various materials such as river pebbles, granite, basalt, iron ore, limestone, quartz, coal gangue, and construction waste. This crusher incorporates advanced technologies from Metso's C series and Sandvik's JM(CJ) series jaw crushers, combined with domestic practicalities, using advanced computer technology to ensure outstanding performance and reliability.
The GC3054 European Type Jaw Crusher has a 30% higher output compared to traditional PE jaw crushers, thanks to its advanced mainframe vibration reduction system, which ensures smoother operation and lower noise levels. It has a feed size of 1375 x 760mm, a speed of 260rpm, and a power of 160kW. The output at different closed-side settings (CSS) is as follows: 80mm (270 - 350t/h), 100mm (325 - 425t/h), 125mm (390 - 510t/h), 150mm (460 - 600t/h), 175mm (530 - 690t/h), 200mm (600 - 780t/h). The weight of the unit is 25.9 tons.
The GC3054 European Type Jaw Crusher features a modular frame and integrated motor base, saving space and reducing installation costs on-site. The discharge opening adjustment is simple and quick, taking only a few minutes to complete. This design makes installation, operation, and maintenance more convenient, reducing operational costs for users.
