Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | GC145 |
| Feed opening | 1400 x 1100 mm |
| CSS Range | 125 - 275 mm |
| Capacity(by hour) | 400 - 1070 tph |
| Motor power | 160 kW |
| Weight | 55.8 t |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the GC145 jaw crusher may vary with different materials and feeding sizes.
The pics show actual production site. This stone production line is close to the mining area which reduces a lot of transport cost and increases the overall profit of the operator.
In Hongyuan Group construction site, there are builders welding steel for gravel production line construction.
In this production line we get to know that the bulk material should be firstly crushed by crusher for large size finished material and then it is crushed into smaller ones for little stones.

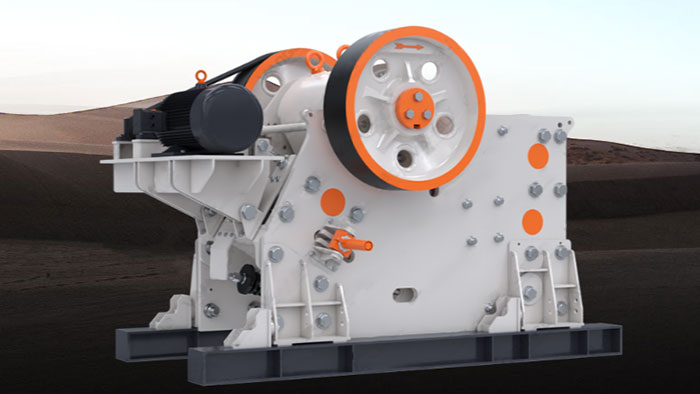

The GC145 European Type Jaw Crusher is a highly efficient and reliable crushing equipment suitable for various materials such as river pebbles, granite, basalt, iron ore, limestone, quartz, coal gangue, and construction waste. This crusher incorporates advanced technologies from Metso's C series and Sandvik's JM(CJ) series jaw crushers, combined with domestic practicalities, using advanced computer technology to ensure outstanding performance and reliability.
The GC145 European Type Jaw Crusher has a 30% higher output compared to traditional PE jaw crushers, thanks to its advanced mainframe vibration reduction system, which ensures smoother operation and lower noise levels. It has a feed size of 1400 x 1100mm, a speed of 220rpm, and a power of 200kW. The output at different closed-side settings (CSS) is as follows: 125mm (400 - 520t/h), 150mm (470 - 610t/h), 175mm (540 - 700t/h), 200mm (610 - 795t/h), 225mm (680 - 885t/h), 250mm (750 - 975t/h), 275mm (820 - 1070t/h). The weight of the unit is 55.8 tons.
The GC145 European Type Jaw Crusher has excellent structural motion characteristics, significantly improving the service life of the jaw plates, extending to around 220 hours. This design not only increases production efficiency but also reduces the frequency of jaw plate replacements, saving production costs.
