Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | GC200 |
| Feed opening | 2000 x 1500 mm |
| CSS Range | 200 - 325 mm |
| Capacity(by hour) | 760 - 1590 tph |
| Motor power | 400 kW |
| Weight | 121.51 t |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the GC200 jaw crusher may vary with different materials and feeding sizes.
This production line is built with a fluorite ore as backing. As primary source of industrial fluorite element the crushed fluorite stone can be widely applied in medical anti-corrosion and mechanical fields. In order to reduce the powder
By selecting reasonable equipment model the production line will greatly improve its capacity. The equipment applied for the production of customers is the most suitable through selection and configuration of professional technician.
EPC general contract construction, the first construction is 1500t/h limestone production line, the second cooperation to build a new 3000t/h limestone processing line.

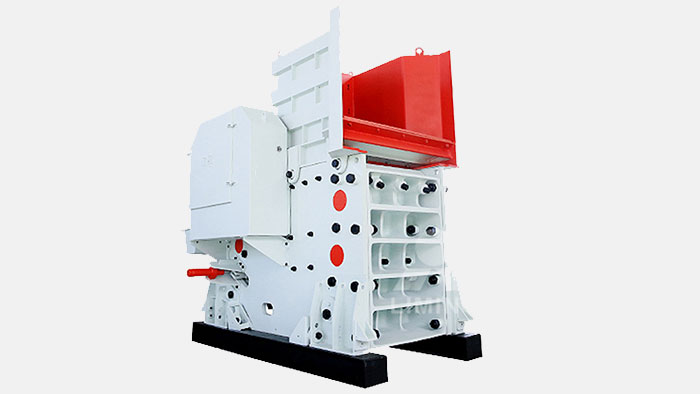

The GC200 European Type Jaw Crusher is a highly efficient and reliable crushing equipment suitable for various materials such as river pebbles, granite, basalt, iron ore, limestone, quartz, coal gangue, and construction waste. This crusher incorporates advanced technologies from Metso's C series and Sandvik's JM(CJ) series jaw crushers, combined with domestic practicalities, using advanced computer technology to ensure outstanding performance and reliability.
The GC200 European Type Jaw Crusher has a 30% higher output compared to traditional PE jaw crushers, thanks to its advanced mainframe vibration reduction system, which ensures smoother operation and lower noise levels. It has a feed size of 2000 x 1500mm, a speed of 220rpm, and a power of 400kW. The output at different closed-side settings (CSS) is as follows: 200mm (760 - 990t/h), 225mm (855 - 1110t/h), 250mm (945 - 1230t/h), 275mm (1040 - 1350t/h), 300mm (1130 - 1470t/h), 325mm (1225 - 1590t/h). The weight of the unit is 121.51 tons.
The GC200 European Type Jaw Crusher uses a bolted connection and non-welded frame structure, providing excellent fatigue strength. The frame components are cast from alloy materials, ensuring the durability and robustness of the equipment. This design ensures high performance and stability during long-term operation, extending the lifespan of the equipment.
