Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | GC140 |
| Feed opening | 1400 x 1070 mm |
| CSS Range | 125 - 250 mm |
| Capacity(by hour) | 385 - 945 tph |
| Motor power | 160 kW |
| Weight | 48.25 t |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the GC140 jaw crusher may vary with different materials and feeding sizes.
After many times inspection and according to equipment quality and output we configured this aggregates production line for Anshun Guizhou. Our company also has aggregates crushing production ba
The owner of this production line has over 20 years of experience in the construction of stone plan. By compared with many others it selects Dingli’s equipment since the aggregates produced have sound grain shape better quality.
The 1200tph large stone production line configured by us for Wuxue Hubei mainly adopts PCZ1820 heavy hammer crusher PCX1220 shaping hammer crusher several sets of efficient vibrating screens and auxiliary dedusting facilities.

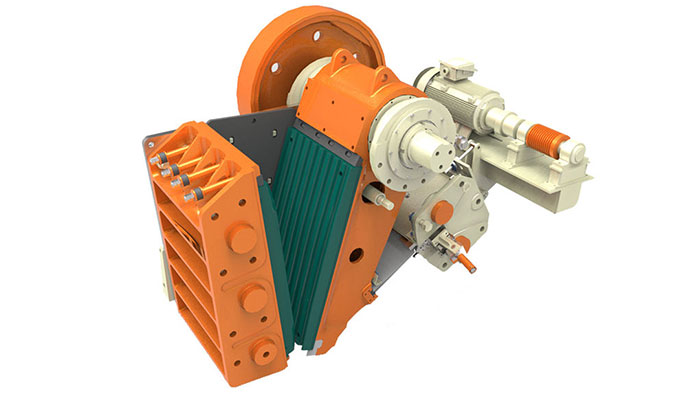

The GC140 European Type Jaw Crusher is a highly efficient and reliable crushing equipment suitable for various materials such as river pebbles, granite, basalt, iron ore, limestone, quartz, coal gangue, and construction waste. This crusher incorporates advanced technologies from Metso's C series and Sandvik's JM(CJ) series jaw crushers, combined with domestic practicalities, using advanced computer technology to ensure outstanding performance and reliability.
The GC140 European Type Jaw Crusher has a 30% higher output compared to traditional PE jaw crushers, thanks to its advanced mainframe vibration reduction system, which ensures smoother operation and lower noise levels. It has a feed size of 1400 x 1070mm, a speed of 220rpm, and a power of 200kW. The output at different closed-side settings (CSS) is as follows: 125mm (385 - 500t/h), 150mm (455 - 590t/h), 175mm (520 - 675t/h), 200mm (590 - 765t/h), 225mm (655 - 850t/h), 250mm (725 - 945t/h). The weight of the unit is 48.25 tons.
The GC140 European Type Jaw Crusher uses a bolted connection and non-welded frame structure, providing excellent fatigue strength. The frame components are cast from alloy materials, ensuring the durability and robustness of the equipment. This design ensures high performance and stability during long-term operation, extending the lifespan of the equipment.
