Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | ZXC160 |
| Feed opening | 1600 x 1200 mm |
| Max feed size | 960 mm |
| CSS Range | 150 - 300 mm |
| Capacity(by hour) | 520 - 1275 tph |
| Motor power | 250 kW |
| Dimensions | 5690 x 3318 x 3843mm |
| Weight | 79,993 kg |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the ZXC160 jaw crusher may vary with different materials and feeding sizes.
Four stone crusher plants take initiative to build a large limestone crushing line with the hourly capacity of 4000 ton the scale of which is rare both at home and aborad.
It is seen at the production site that the stone with large diameter is entering into the crusher through the feed opening. As for the material with the particle size not exceeding 1.6m we adopt the crusher with large hourly capacity.
After being conveyed to the heavy hammer crusher by the vibrating feeder the material successively goes through coarse & fine crushing and screening by gradation.

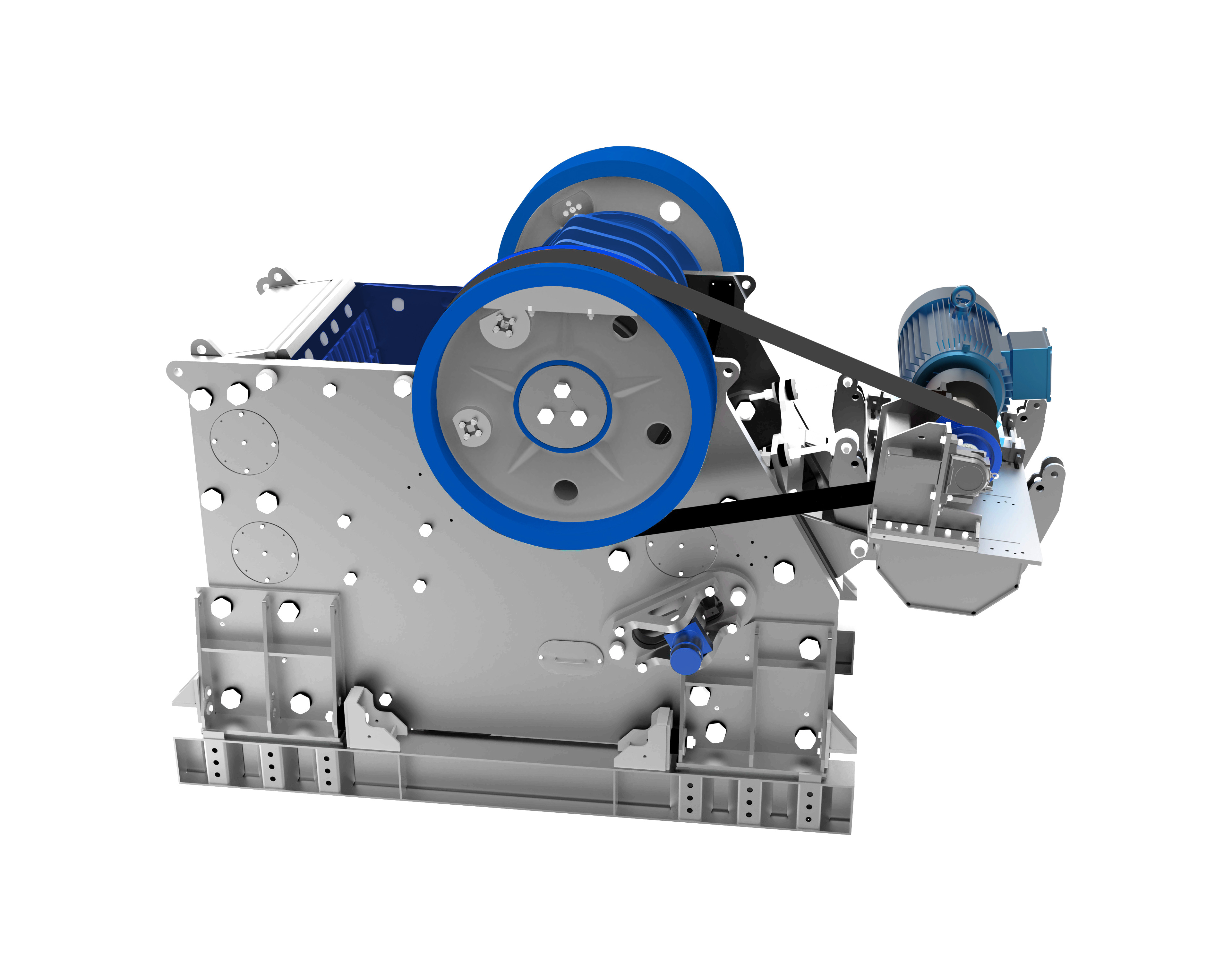

The ZXC160 Jaw Crusher is a multifunctional and high-capacity device critical to the mining, smelting, construction, highway, railway, water conservancy, and chemical industries. With a feeding port size of 1600 x 1200 mm, it can process materials up to 960 mm. The ZXC160 Jaw Crusher is suitable for handling various ores and large-sized materials with compressive strength below 320MPa, making it an ideal choice for large-scale crushing applications.
The ZXC160 Jaw Crusher is equipped with an advanced discharge opening adjustment system, allowing quick adaptation to different production needs. Equipped with a 250 kW motor and a 220 rpm eccentric shaft rotation speed, the crusher can adjust the discharge opening from 150 - 300 mm. This design increases the application range of the equipment and simplifies user operations.
