Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S100 |
| Feed opening | 760 x 1000 mm |
| Max feed size | 650 mm |
| CSS Range | 70 - 200 mm |
| Capacity(by hour) | 140 - 400 t/h |
| Motor power | 110 kW, |
| Dimensions | 3670 x 2420 x 2490 mm |
| Rotation speed of eccentric shaft | 260 rpm |
*Note: The processing capacity of the J6S100 jaw crusher may vary with different materials and feeding sizes.
EPC general contract construction, production of washed-sand, concrete and other building materials, but also installed the Zhongyu Dingli intelligent mine management system, to achieve more convenient production line management and operation.
Equipment configuration: PCZ1615 heavy hammer crusher ZGC1550 vibrating feeder 2YK2460 vibrating screen*2 sets Performance feature: high production line output good products quality compressive strength and seamless stone.
Dingli Mining Corporate was recommended by one of my friends. It is surprise that Dingli machines dont let us down with high production effect fine finished material shape and stable operation.

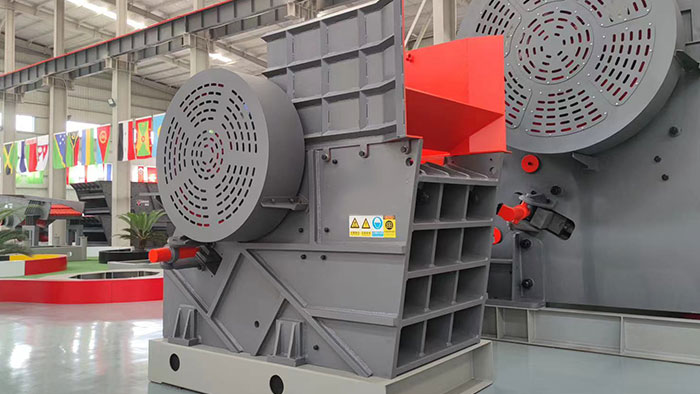

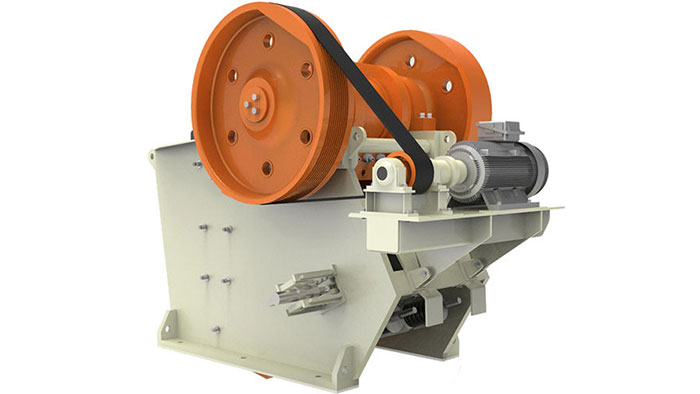

J6S100 European Jaw Crusher: Powerful Performance, Flexible Application
J6S100 European Jaw Crusher has gained significant market recognition for its powerful performance and wide range of applications. This equipment can handle materials with a maximum input size of 650 mm, with an adjustable output size range of 70 - 200 mm and a capacity of up to 140 - 400 t/h. It operates at a power of 110 kW, a rotational speed of 260 rpm, and has an overall dimension of 3670 x 2420 x 2490 mm, with a feeding size of 760 x 1000 mm.
The J6S100 European Jaw Crusher features an optimized “V”-shaped cavity design, ensuring smooth and efficient material flow while reducing jaw plate wear. The dual-wedge adjustment device allows operators to easily adjust the discharge opening size to meet different operational requirements. The machine's frame is constructed without welding, enhancing stability and safety.
In terms of material selection, the J6S100 European Jaw Crusher uses premium raw materials and components, ensuring long-term reliability and low failure rates. Whether used in mining, construction material processing, or urban construction waste recycling, the J6S100 European Jaw Crusher is an excellent choice.
