Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S80 |
| Feed opening | 520 x 800 mm |
| Max feed size | 420 mm |
| CSS Range | 60 - 150 mm |
| Capacity(by hour) | 80 - 290 t/h |
| Motor power | 75 kW |
| Dimensions | 2650 x 1540 x 1780 mm |
| Rotation speed of eccentric shaft | 350 rpm |
*Note: The processing capacity of the J6S80 jaw crusher may vary with different materials and feeding sizes.
This 1,000 tons of aggregate production line was put into operation in September 2018, using DLPCZ1820 heavy hammer crusher, DLPC1220 plastic hammer crusher, DL3YKZ3070 vibrating screen and other sets of mine production equipment, the introduction of a complete set of mine intelligent management system.
Our companys technical staffs according to the customers request develop the entire production line of stone production process and select the required types of equipment and its supporting parts.
The above pictures show the installation site of the cement production line in Saima Ningxia.

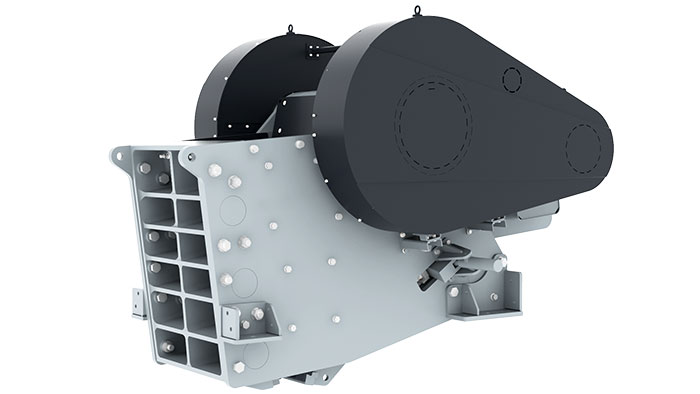

J6S80 European Jaw Crusher is a high-performance crushing equipment meticulously designed by Zhongji Industry, suitable for power plants, dry-mixing, chemical, construction materials, and mining sectors. This model features a feeding size of 520 x 800 mm, capable of handling material with a maximum input size of 420 mm. The output size can be adjusted between 60 - 150 mm, with a capacity ranging from 80 - 290 t/h. It operates at a power of 75 kW and a rotational speed of 350 rpm, with an overall dimension of 2650 x 1540 x 1780 mm.

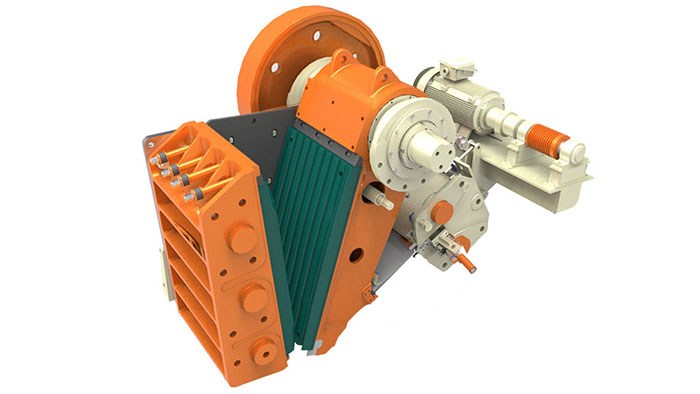

The core advantages of the J6S80 European Jaw Crusher lie in its unique design and superior technical performance. The moving jaw assembly is made from high-quality cast steel, ensuring stability and durability. The symmetrical “V”-shaped cavity design enhances feed particle size, increases production, and reduces jaw plate wear. Additionally, the hydraulic wedge-type discharge opening adjustment device provides safe and quick discharge opening adjustments, significantly improving the automation level of maintenance. Even in the event of a power outage, the system allows for rapid resumption of operations.
This model also features a modular design, making it easy to disassemble and transport, ideal for environments that require frequent relocation. Whether processing limestone, basalt, granite, pebbles, or even construction waste, the J6S80 European Jaw Crusher offers efficient and reliable crushing solutions.
