Product data

modelJ80
Feed opening1500 x 2000 mm
Max feed size1250 mm
CSS Range170 - 300 mm
Capacity(by hour)600 - 1500 tph
Motor power400 kW
Weight135,000 kg
Rotation speed of eccentric shaft200 rpm

*Note: The processing capacity of the J80 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

J55 jaw crusher

J55 jaw crusherJ55

Nominal capacity340 - 950 tph

Max. feed size900 mm

Motor power200 kW

Live Chat
J50 jaw crusher

J50 jaw crusherJ50

Nominal capacity270 - 850 tph

Max. feed size800 mm

Motor power160 kW

Live Chat

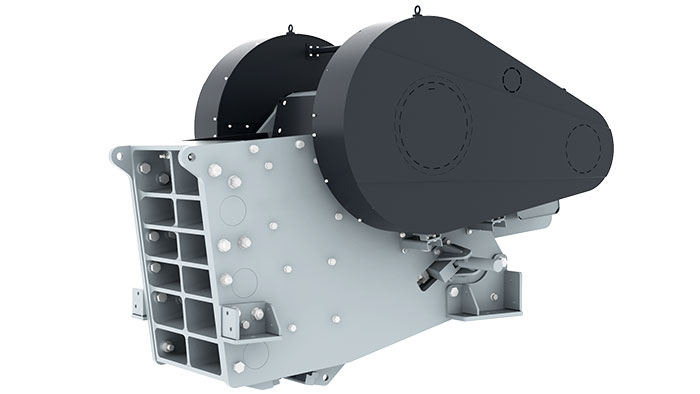

J40 jaw crusher

J40 jaw crusherJ40

Nominal capacity110 - 360 tph

Max. feed size500 mm

Motor power75 kW

Live Chat

Case stories

1000T/H Construction Aggregate Production Line

This construction sand production line has an annual output of 3 million tons of high-quality sand aggregate, 1 million tons of machine-made sand, 1.2 million tons of dry mixed mortar, 1 million cubic meters of concrete and other building materials.

3000TPH Gravel Aggregate Production Line of Dingli

Constructed according to national standard the whole production linemakes full use of local rich mining resource. The process adopts transfer silo layout and suitable belt conveyor system. Such production model can be widely promoted acros

1200-1500TPH Stone Production Line in Ruichang Jiujiang

We used our main equipment of heavy hammer crusher in designing Ruichang 1500 aggregates production line. As current highest capacity and best performance hammer crusher among domestic regions it is popular in many customers.

Additional product information

J80 Jaw Crusher: Ultimate Solution for High-Volume Crushing

Technological Innovations:

  • Smart Control System: Equipped with advanced smart control systems for automated operation and remote monitoring.
  • Eco-Friendly Design: Environmental considerations have been integrated into the design, reducing dust emissions and noise pollution.
  • Wear-Resistant Materials: Utilization of new wear-resistant materials has significantly extended the service life of the equipment.
  • Energy Efficiency: Energy-saving technologies have been applied, reducing power consumption and improving energy utilization efficiency.

Technical Specifications:

  • Feed Opening: 1500 x 2000 mm
  • Maximum Feed Size: ≤1250 mm
  • Discharge Opening Range: 170-300 mm
  • Speed: 200 rpm
  • Capacity: 600-1500 t/h
  • Motor Power: 400 kW
  • Machine Weight: 135,000 kg
