Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S130 |
| Feed opening | 1100 x 1300 mm |
| Max feed size | 950 mm |
| CSS Range | 120 - 260 mm |
| Capacity(by hour) | 260 - 780 t/h |
| Motor power | 160 kW |
| Dimensions | 4836 x 2762 x 3489 mm |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the J6S130 jaw crusher may vary with different materials and feeding sizes.
There are hammer crushers placed side by side in the opposite direction. The raw materials and unqualified materials are conveyed into crushers through transmission pipeline for fine material shape. This production line is wholly designed b
This production line is especially constructed for the building stone with wide application of finished material and optimized operation efficiency.
Configuration List Equipment Model Unit(s) Vibrating Feeder ZG2038 1 Heavy Hammer Crusher PCZ1815 1 Hammer Crusher XPC1216 1 Vibrating Screen 3YKZ3070 2 Vibrating Screen 2YKZ3070 2 800TPH Gravel Aggregates Production Process The bulk limest

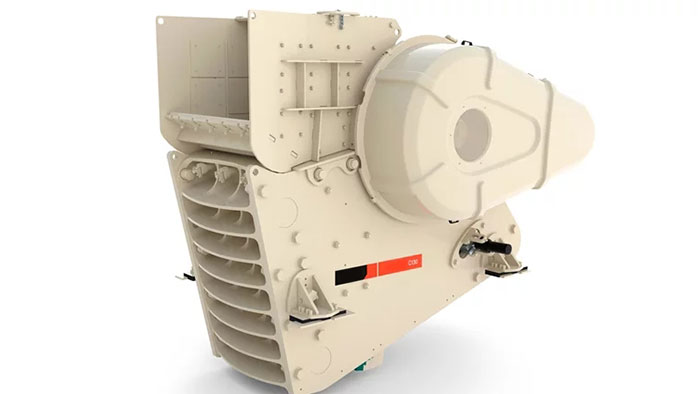

J6S130 European Jaw Crusher: High Performance, High Efficiency
J6S130 European Jaw Crusher is a high-performance crushing equipment offered by Zhongji Industry, suitable for the coarse and medium crushing of various ores and rocks. This model has a feeding size of 1100 x 1300 mm, capable of handling materials with a maximum input size of 950 mm. The output size can be adjusted between 120 - 260 mm, with a capacity ranging from 260 - 780 t/h. It operates at a power of 160 kW, a rotational speed of 220 rpm, and has an overall dimension of 4836 x 2762 x 3489 mm.
The J6S130 European Jaw Crusher employs high-quality cast steel moving jaw assembly, ensuring the stability and durability of the equipment. The symmetrical “V”-shaped cavity design, combined with a large inclination angle, large stroke, and reasonable rotational speed, not only increases feed particle size but also boosts production and reduces jaw plate wear. The hydraulic wedge-type discharge opening adjustment device provides quick and accurate discharge opening adjustments, enhancing the intelligence level of the equipment.
The modular design of the entire machine makes it easy to disassemble and transport, adapting to various working environments. Whether used in mining, construction material processing, or urban construction waste recycling, the J6S130 European Jaw Crusher provides efficient and reliable crushing solutions.
