Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S96 |
| Feed opening | 580 x 930 mm |
| Max feed size | 480 mm |
| CSS Range | 60 - 175 mm |
| Capacity(by hour) | 120 - 325 t/h |
| Motor power | 90 kW |
| Dimensions | 2950 x 2300 x 1950 mm |
| Rotation speed of eccentric shaft | 330 rpm |
*Note: The processing capacity of the J6S96 jaw crusher may vary with different materials and feeding sizes.
This 500tph stone production line configured by Xinxiang Dingli in Pingliang Gansu mainly adopts PCZ1615 heavy hammer crusher with hourly capacity of 4200-500 ton ZG2038 vibrating feeder and several sets of our efficient vibrating screen.
This whole aggregates production line adopts modular assembly mode. Each steel structure is assembled in the workshop before its delivery to the production site which saves a lot of time required for assembly.
Constructed according to national standard the whole production linemakes full use of local rich mining resource. The process adopts transfer silo layout and suitable belt conveyor system. Such production model can be widely promoted acros

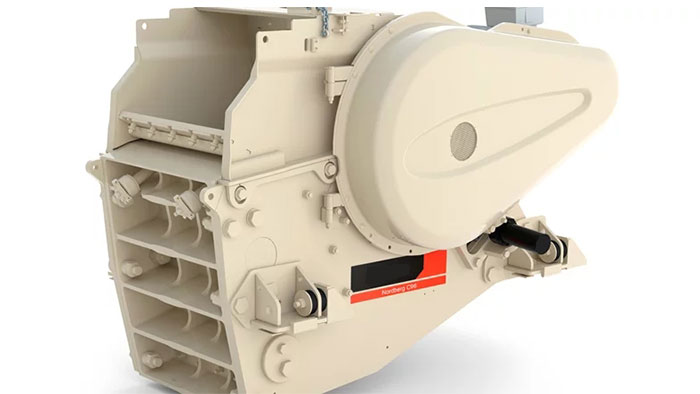

J6S96 European Jaw Crusher: Technological Innovation, Quality Assurance
J6S96 European Jaw Crusher is another masterpiece by Zhongji Industry, specifically designed for the efficient crushing of hard and highly abrasive minerals and rocks. This model has a feeding size of 580 x 930 mm, capable of handling materials with a maximum input size of 480 mm. The output size can be adjusted between 60 - 175 mm, with a capacity ranging from 120 - 325 t/h. It operates at a power of 90 kW, a rotational speed of 330 rpm, and has an overall dimension of 2950 x 2300 x 1950 mm.
The J6S96 European Jaw Crusher employs advanced moving jaw casting technology, with the moving jaw assembly made from high-quality cast steel, ensuring the stability and durability of the core components. The optimized “V”-shaped cavity design, combined with reasonable rotational speed settings, not only increases production but also ensures uniform particle size. The application of the hydraulic wedge-type discharge opening adjustment device makes operation simpler and maintenance more convenient.
The modular design of the entire machine not only facilitates disassembly and transportation but also provides greater flexibility during installation, making it adaptable to various working environments. Whether on mining sites or construction waste processing stations, the J6S96 European Jaw Crusher demonstrates its outstanding performance and reliability.
