Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S145 |
| Feed opening | 1100 x 1450 mm |
| Max feed size | 920 mm |
| CSS Range | 125 - 275 mm |
| Capacity(by hour) | 320 - 950 t/h |
| Motor power | 200 kW |
| Dimensions | 4400 x 3060 x 3210 mm |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the J6S145 jaw crusher may vary with different materials and feeding sizes.
This production line is built with a fluorite ore as backing. As primary source of industrial fluorite element the crushed fluorite stone can be widely applied in medical anti-corrosion and mechanical fields. In order to reduce the powder
As a centralized area of limestone Guangan has been established many gravel production lines and concentrate many huge stone production lines.
Equipment configuration: PCZ1512 heavy hammer crusher ZGC1238 vibrating screen*2 ZSJ1215 dual rotor sand making machine.

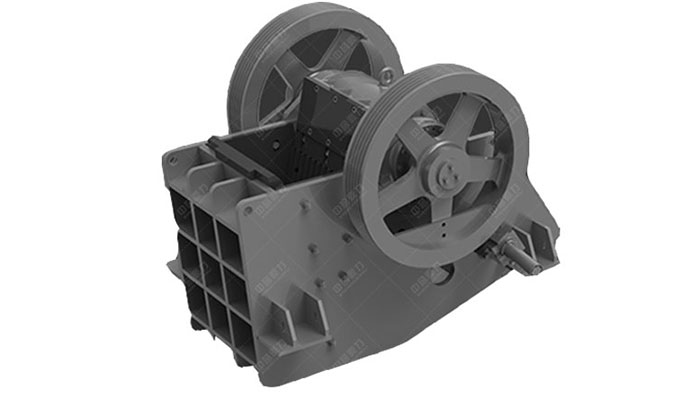

J6S145 European Jaw Crusher: Efficient Crushing, Intelligent Control
J6S145 European Jaw Crusher is a high-efficiency crushing equipment offered by Zhongji Industry, suitable for the coarse and medium crushing of various ores and rocks. This model has a feeding size of 1100 x 1450 mm, capable of handling materials with a maximum input size of 920 mm. The output size can be adjusted between 125 - 275 mm, with a capacity ranging from 320 - 950 t/h. It operates at a power of 200 kW, a rotational speed of 220 rpm, and has an overall dimension of 4400 x 3060 x 3210 mm.
The J6S145 European Jaw Crusher employs high-quality cast steel moving jaw assembly, ensuring the stability and durability of the equipment. The symmetrical “V”-shaped cavity design, combined with a large inclination angle, large stroke, and reasonable rotational speed, not only increases feed particle size but also boosts production and reduces jaw plate wear. The hydraulic wedge-type discharge opening adjustment device provides quick and accurate discharge opening adjustments, enhancing the intelligence level of the equipment.
The modular design of the entire machine makes it easy to disassemble and transport, adapting to various working environments. Whether used in mining, construction material processing, or urban construction waste recycling, the J6S145 European Jaw Crusher provides efficient and reliable crushing solutions.
