Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher

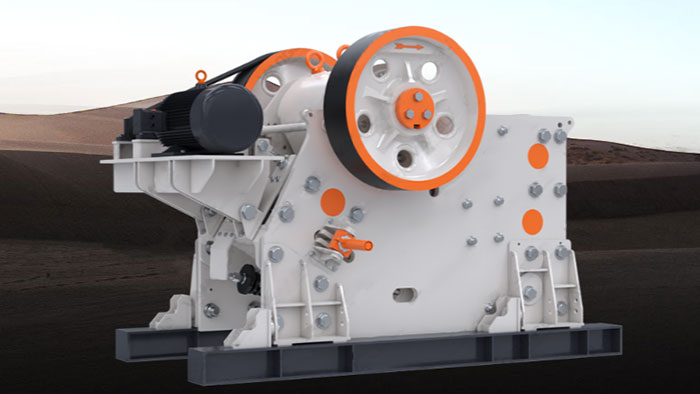

| model | 6CX145 |
| Feed opening | 1400 x 1100 mm |
| Max feed size | ≤1000 mm |
| CSS Range | 125 - 275 mm |
| Capacity(by hour) | 400 - 1070 tph |
| Motor power | 200 kW |
| Weight | 53,800 kg |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the 6CX145 jaw crusher may vary with different materials and feeding sizes.
This production line is especially constructed for the building stone with wide application of finished material and optimized operation efficiency.
The finished material is washed with water, the surface is clean, the perception is good, the quality is excellent, and the mud content is less, which can meet the market demand for high standard aggregate and machine-made sand, and greatly improve the economic efficiency.
Equipment configuration: PCZ1512 heavy hammer crusher ZGC1250 vibrating feeder YK1860 vibrating screen*2 sets
Length of fixed jaw plate ：2300 mm
Maximum repair part weight ：18600kg(without flywheel, movable jaw assembly)
Total weight：53800kg(excluding motor and accessories)
| Closed side setting (mm) | Capacity (t/h) |
|---|---|
| 125 | 400-520 |
| 150 | 470-610 |
| 175 | 540-700 |
| 200 | 610-795 |
| 225 | 680-885 |
| 250 | 750-975 |
| 275 | 820-1070 |
