C6X145

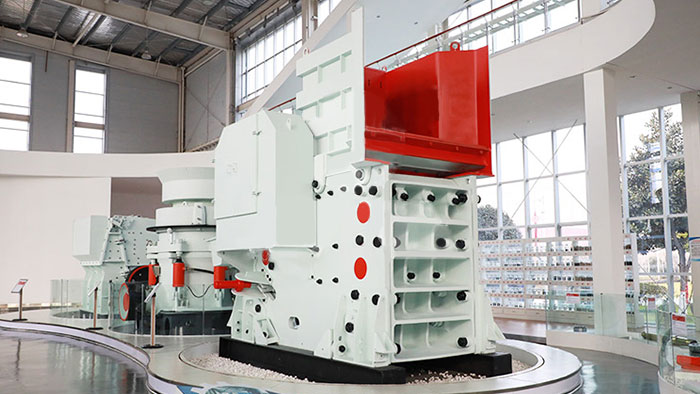

C6X145 Jaw Crusher

The C6X145 jaw crusher refers to a jaw crusher with a feed opening length of 1450mm, capable of producing 320-950 tons per hour. Depending on the discharge opening size, the output varies. When the discharge opening is set to 370mm, the hourly output is 320-470 tons; when adjusted to 600mm, the hourly output can reach 600-870 tons.

Technical Parameters:

• Feed Opening Length (mm): 1450
• Feed Opening Width (mm): 1100
• Motor Power (Kw): 200
• Speed (rpm): 220
• Discharge Opening Range (mm) & Capacity (t/h):
  • 370 mm: 320-470 t/h
  • 430 mm: 370-550 t/h
  • 480 mm: 430-630 t/h
  • 540 mm: 480-710 t/h
  • 600 mm: 540-790 t/h
  • 660 mm: 600-870 t/h

Features:

• Optimized Crushing Chamber: The crushing chamber has been optimized to enhance material throughput and crushing efficiency.
• Modular Frame Design: The frame is designed with detachable side walls and front/rear walls, secured with bolts instead of welding, eliminating stress concentration issues and providing a more compact and reliable structure.
• Double Wedge Adjustment: The wedge block adjustment system allows for easy and safe adjustment of the discharge opening, either mechanically or hydraulically.
• Elastic Limiting Shock Absorption: Elastic limit blocks and rubber shock absorbers effectively absorb peak loads, reducing mutual impact between the crusher and its foundation, enhancing the durability of both.
• Integrated Motor Base: The integrated motor base reduces installation space and ensures stable power transmission.

Applications and Materials: Used in various sectors such as metallurgy, mining, chemicals, cement production, construction, refractories, and ceramics. Suitable for processing materials with compressive strengths up to 300MPa, including hard and strongly abrasive rocks and minerals.
