Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CGE-100 |
| Feed opening | 550 x 910 mm |
| Max feed size | 450 mm |
| CSS Range | 70 - 130 mm |
| Capacity(by hour) | 54 - 150 t/h |
| Motor power | 75 kW |
| Weight | 11,000 |
*Note: The processing capacity of the CGE-100 jaw crusher may vary with different materials and feeding sizes.
At the production site it is seen that the material can be crushed into sound grain shape after successively crushing of large heavy hammer crusher and shaping crusher. Our shaping crusher has sound effect in optimizing grain shape.
Machine: ZG1238 vibrating feeder + PCZ1512 heavy hammer crusher + 3YKQ2470 vibrating screen + 2YKQ2470 vibrating screen
As to the process of cement production you should firstly crush the materials of limestone and clay and then matching.

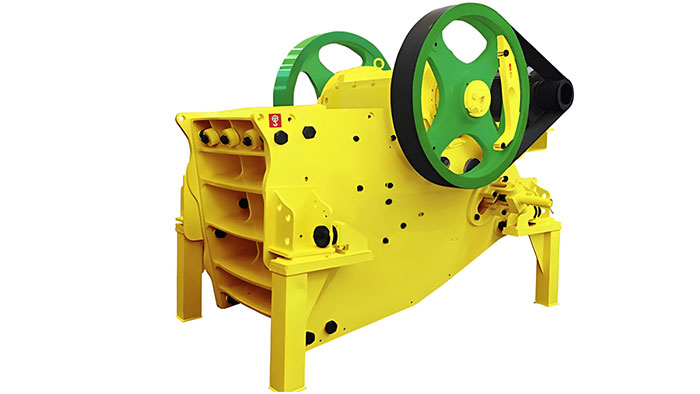

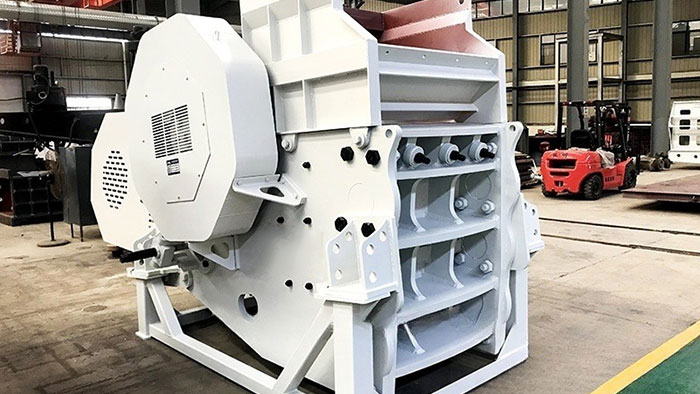

The CGE-100 Jaw Crusher is an entry-level model in the CGE Series Smart Jaw Crushers, designed for primary crushing in small to medium-sized mines and quarries. This crusher can handle feed sizes up to 450 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 350 MPa.
The CGE-100 Jaw Crusher has a production capacity of 54 to 150 tons per hour and is equipped with a 75 kW motor, ensuring efficient and stable operation. Its unique deep-cavity design allows for a larger processing volume compared to conventional jaw crushers. The frame is constructed using a dovetail welding technique, providing higher strength and durability compared to monolithic cast frames.
In addition, the CGE-100 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features not only enhance production efficiency but also significantly extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition.
Overall, the CGE-100 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in small to medium-sized operations.
