Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | ZXC110 |
| Feed opening | 1100 x 850 mm |
| Max feed size | 680 mm |
| CSS Range | 70 - 200 mm |
| Capacity(by hour) | 190 - 625 tph |
| Motor power | 160 kW |
| Dimensions | 3890 x 2374 x 2836 mm |
| Weight | 26,150 kg |
| Rotation speed of eccentric shaft | 230 rpm |
*Note: The processing capacity of the ZXC110 jaw crusher may vary with different materials and feeding sizes.

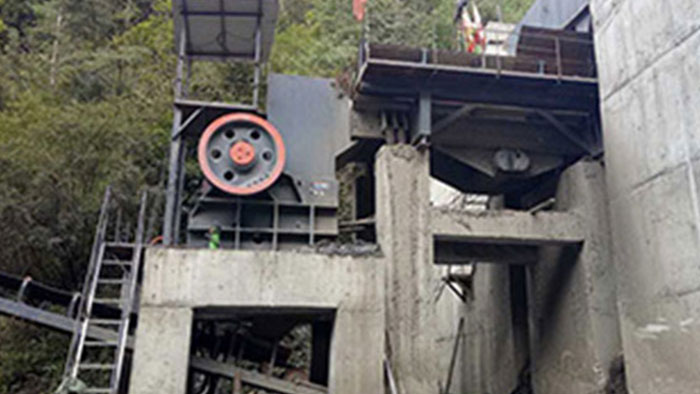

As a large medium stone production line Xinxiang Dingli finally the design and configuration plan of 800t/h production line after combining local circumstance and material characteristics and all around inspection and research.
From this site we get to know this production line builds with mountain that can make fully use of limestone. All the machines are installed and provided by Xinxiang Dingli with high matching.
After many times site inspection material hardness and compressive strength testing and overall recognition of demanding finished material size and output Xinxiang Zhongyu Dingli lastly designed this 1000t/h fine aggregates line.

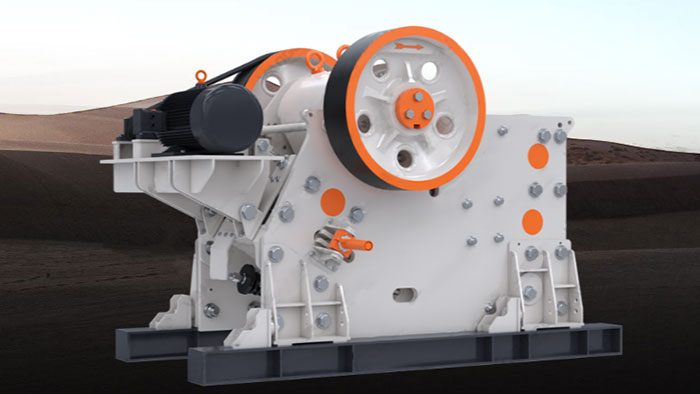

The ZXC110 Jaw Crusher is equipped with advanced crushing technology and wide applicability, making it an essential tool in the mining, smelting, construction, highway, railway, water conservancy, and chemical industries. With a feeding port size of 1100 x 850 mm, it can handle materials up to 680 mm. The ZXC110 Jaw Crusher is capable of processing a variety of ores and large-sized materials with compressive strength below 320MPa, ideal for aggregate shaping, manufactured sand, asphalt concrete, and similar applications.
The ZXC110 Jaw Crusher employs a specialized adjustment mechanism, making the discharge opening adjustment more convenient. Equipped with a 160 kW motor and a 230 rpm eccentric shaft rotation speed, the crusher can adjust the discharge opening from 70 - 200 mm. This design simplifies the operation process and enhances the flexibility and adaptability of the equipment.
