Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S110 |
| Feed opening | 850 x 1100 mm |
| Max feed size | 720 mm |
| CSS Range | 80 - 200 mm |
| Capacity(by hour) | 160 - 550 t/h |
| Motor power | 132 kW |
| Dimensions | 3800 x 2450 x 2550 mm |
| Rotation speed of eccentric shaft | 230 rpm |
*Note: The processing capacity of the J6S110 jaw crusher may vary with different materials and feeding sizes.
Although there are only several sets of mining equipment adopted in this production line the capacity can reach 300 ton per hour. It mainly lies in Dingli’s PCZ 1512 heavy hammer crusher with the hourly capacity of 320 ton.
As to the process of cement production you should firstly crush the materials of limestone and clay and then matching.
With fully closed structure the whole stone production line is free from powder pollution. The reasonable configuration of belt conveyor facilitates smooth production of the production line.

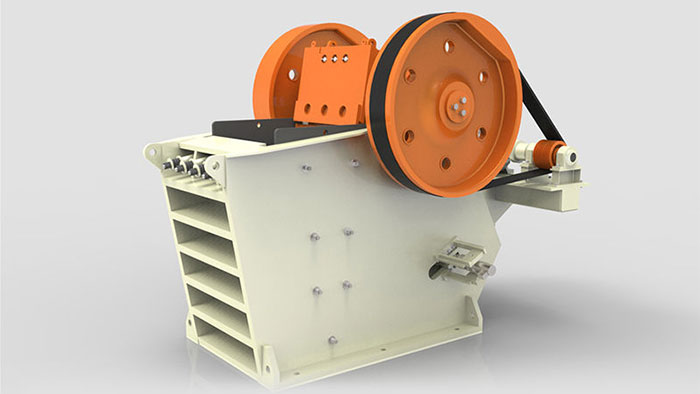

J6S110 European Jaw Crusher: Powerful Drive, Efficient Crushing
J6S110 European Jaw Crusher is a high-performance crushing equipment offered by Zhongji Industry, suitable for power plants, dry-mixing, chemical, construction materials, and mining sectors. This model has a feeding size of 850 x 1100 mm, capable of handling materials with a maximum input size of 720 mm. The output size can be adjusted between 80 - 200 mm, with a capacity ranging from 160 - 550 t/h. It operates at a power of 132 kW, a rotational speed of 230 rpm, and has an overall dimension of 3800 x 2450 x 2550 mm.
The J6S110 European Jaw Crusher employs high-quality cast steel moving jaw assembly, ensuring the stability and durability of the equipment. The symmetrical “V”-shaped cavity design, combined with a large inclination angle, large stroke, and reasonable rotational speed, not only increases feed particle size but also boosts production and reduces jaw plate wear. The hydraulic wedge-type discharge opening adjustment device provides quick and accurate discharge opening adjustments, enhancing the intelligence level of the equipment.
The modular design of the entire machine makes it easy to disassemble and transport, adapting to various working environments. Whether used in mining, construction material processing, or urban construction waste recycling, the J6S110 European Jaw Crusher provides efficient and reliable crushing solutions.
