Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CGE-300 |
| Feed opening | 760 x 1065 mm |
| Max feed size | 650 mm |
| CSS Range | 100 - 170 mm |
| Capacity(by hour) | 210 - 420 t/h |
| Motor power | 132 kW |
| Dimensions | 2800 x 2500 x 2840 mm |
| Weight | 28,000 Kg |
*Note: The processing capacity of the CGE-300 jaw crusher may vary with different materials and feeding sizes.
This stone production line designed and configured by Xinxiang Dingli is featured by energy saving environmental protection and large scale.
The above pictures show production site of hard rock crusher plant. Unlike traditional crushing plant it adopts only one set of hard rock crusher to complete the crushing process which greatly reduces the equipment investment and increase
In this stone production line it is easy to carry out maintenance on the devices for example the hammer crusher can be opened by hydraulic pressure in order to repair and maintain the hammerhead without using external tools.

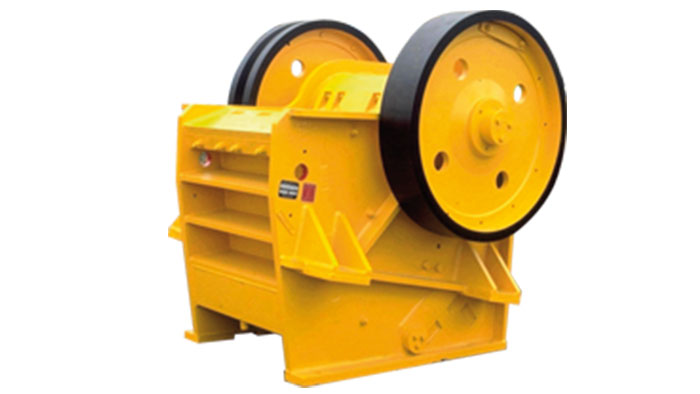

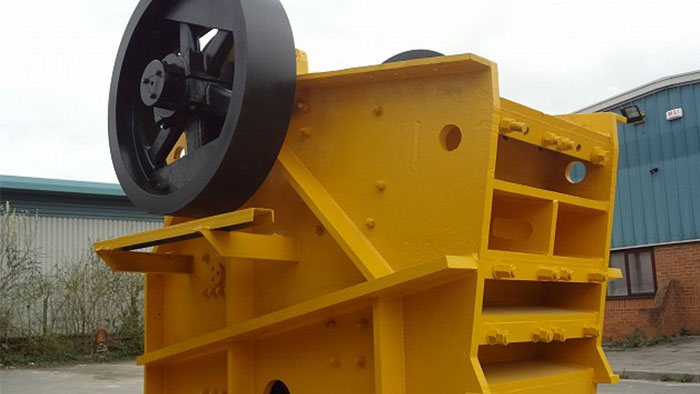

The CGE-300 Jaw Crusher is a large model in the CGE Series Smart Jaw Crushers, designed for primary crushing in large mines and quarries. This crusher can handle feed sizes up to 650 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 350 MPa.
The CGE-300 Jaw Crusher has a production capacity of 210 to 420 tons per hour and is equipped with a 132 kW motor, ensuring efficient and stable operation. Its unique deep-cavity design allows for a larger processing volume compared to conventional jaw crushers. The frame is constructed using a dovetail welding technique, providing higher strength and durability compared to monolithic cast frames.
In addition, the CGE-300 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features not only enhance production efficiency but also significantly extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition.
Overall, the CGE-300 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in large operations.
