Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CGE-500 |
| Feed opening | 1060 x 1220 mm |
| Max feed size | 900 mm |
| CSS Range | 100 - 300 mm |
| Capacity(by hour) | 300 - 650 t/h |
| Motor power | 200 kW |
| Dimensions | 3415 x 2925 x 3845 mm |
*Note: The processing capacity of the CGE-500 jaw crusher may vary with different materials and feeding sizes.
The gravel aggregates production line is connected by the belt conveyor for directly transporting the aggregates to the concrete production project. With configuration of the complete set of gravel production equipment the crushing line ca
Equipment configuration: PCZ1620 heavy hammer crusher ZG2028 vibrating feeder 3YKZ2070 vibrating screen*2 sets. Performance feature: low investment quick interest gain high automation.
It isnt enough with only a heavy hammer crusher in gravel production line but needs to add proper feeder and belt conveyor. Our technicians have much experience in configuring production line.

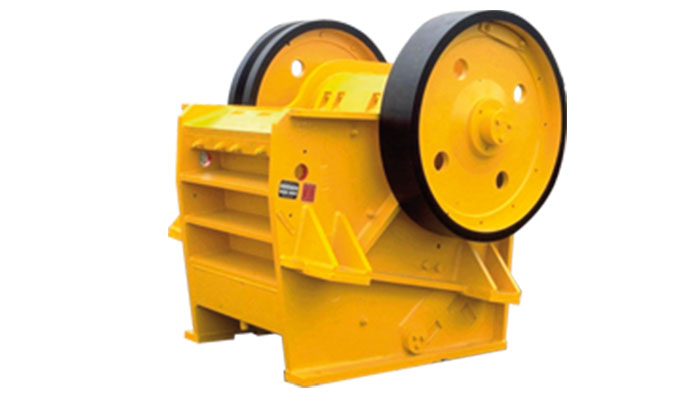

The CGE-500 Jaw Crusher is an ultra-high-performance model in the CGE Series Smart Jaw Crushers, designed for primary crushing in super-large mines and quarries. This crusher can handle feed sizes up to 900 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 350 MPa.
The CGE-500 Jaw Crusher has a production capacity of 300 to 650 tons per hour and is equipped with a 200 kW motor, ensuring efficient and stable operation. Its unique deep-cavity design allows for a larger processing volume compared to conventional jaw crushers. The frame is constructed using a dovetail welding technique, providing higher strength and durability compared to monolithic cast frames.
In addition, the CGE-500 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features not only enhance production efficiency but also significantly extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition.
Overall, the CGE-500 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in super-large operations.
