Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CJ1113 |
| Feed opening | 1100 x 1300 mm |
| Max feed size | 940 mm |
| CSS Range | 120 - 260 mm |
| Capacity(by hour) | 360 - 780 t/h |
| Motor power | 160 kW |
| Dimensions | 4863 x 2762 x 3489 mm |
| Rotation speed of eccentric shaft | 220 r/min |
*Note: The processing capacity of the CJ1113 jaw crusher may vary with different materials and feeding sizes.
As a 250-350t/h production line and the typical configuration of our company the heavy hammer crusher can produce finished material in only one time crushing with high quality finished stone.
Basic configuration includes ZG2028 vibrating feeder PCZ1820 heavy hPC1220 hammer crusher 2YKZ3070 vibrating screen and relative dedusting equipment etc.
In the production site of customer it can be seen that the raw materials of sand making are mainly the stones with large grain size and through being crushed these stones are finally used for sand making.

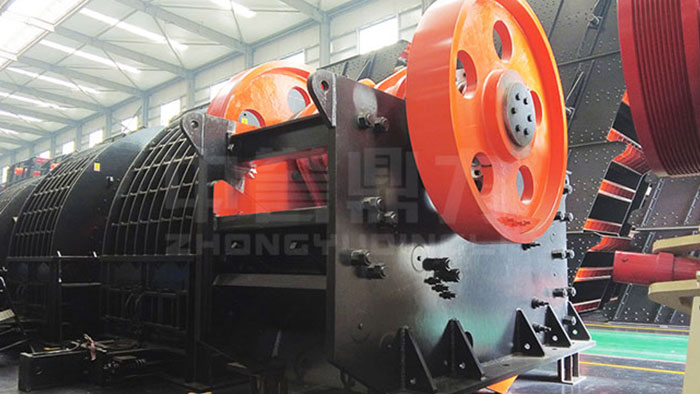

The CJ1113 Jaw Crusher is an advanced and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
The CJ1113 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The CJ1113 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The CJ1113 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
