Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CJ1216 |
| Feed opening | 1200 x 1600 mm |
| Max feed size | 1050 mm |
| CSS Range | 165 - 320 mm |
| Capacity(by hour) | 450 - 1100 t/h |
| Motor power | 220 kW |
| Dimensions | 6700 x 4040 x 4465 mm |
| Rotation speed of eccentric shaft | 220 r/min |
*Note: The processing capacity of the CJ1216 jaw crusher may vary with different materials and feeding sizes.
It’s seen the gravel aggregate production line has large scale which can meet the customer requirement for large capacity. The dust collectors will be configured later for environment protection.
With large quantity of soil in raw material it is suitable to adopt the feeder functioned with screening which can greatly reduce the impurities in production and improve the material cleanness; moreover the customer satisfaction can also be improved.
As a large medium stone production line Xinxiang Dingli finally the design and configuration plan of 800t/h production line after combining local circumstance and material characteristics and all around inspection and research.

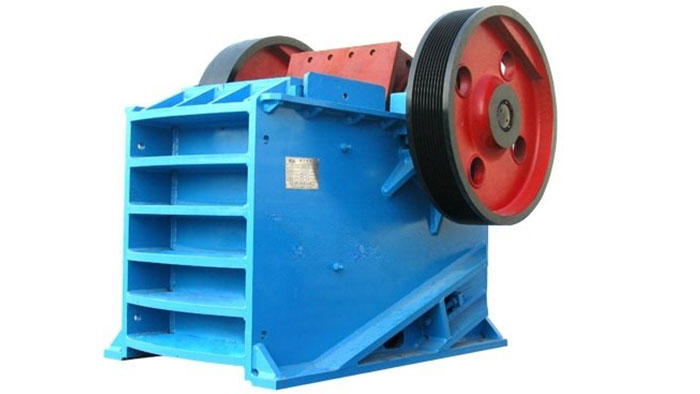

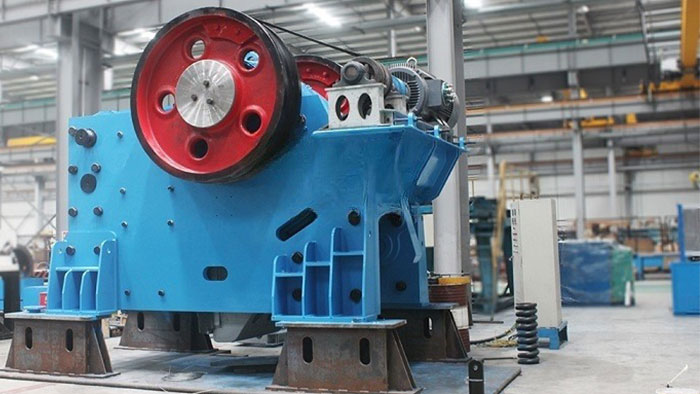

The CJ1216 Jaw Crusher is a high-capacity and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
The CJ1216 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The CJ1216 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and fly轮 are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The CJ1216 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
