CJ3040

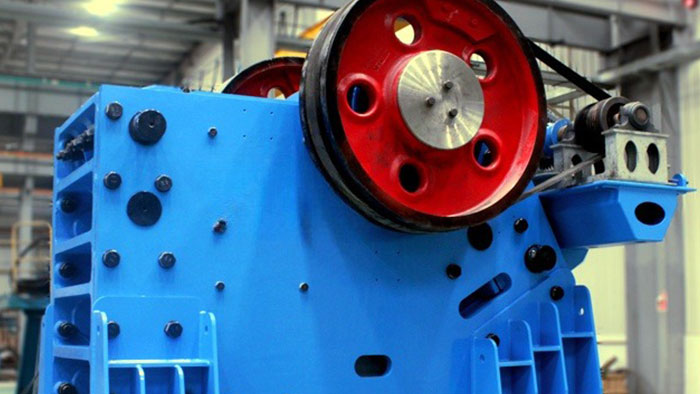

CJ3040 Jaw Crusher: Reliable Primary Crushing Machine

The CJ3040 jaw crusher is a top-tier primary crushing machine that integrates the latest advancements in crushing technology and design. Suitable for crushing limestone, granite, and materials with compressive strengths up to 280 MPa, the CJ3040 excels in providing increased productivity, user-friendliness, lower environmental footprint, and notable energy savings compared to traditional jaw crushers.

Technical Specifications

• Maximum Feed Size: 640 mm
• Production Capacity: 120 - 490 t/h
• Adjustable Discharge Opening: 70 - 200 mm
• Motor Power: 90 - 110 kW
• Weight: 23,200 kilograms

Key Features

• High-Quality Moving Jaw Assembly: The CJ3040 is equipped with a sturdy moving jaw component crafted from top-notch materials, guaranteeing superior reliability and extending the machine's lifespan by roughly 3 to 5 years.
• Scientific Finite Element Analysis: Using advanced finite element analysis technologies, the CJ3040 optimizes the crushing process, increasing output by at least 1.5 times and substantially enhancing efficiency.
• Innovative Toothed Liner Design: The new toothed liner design adds 30% more effective length to the jaw plates, increasing the contact surface with materials and enhancing crushing capacity.
• Wedge Block Discharge Adjustment Mechanism: The CJ3040 incorporates a wedge block adjustment system for the discharge opening, leading to a more uniform end product size and simplifying the adjustment process.
• Core Components: Essential components include the stationary jaw, moving jaw, eccentric shaft, and frame. The moving jaw's bearing has superior sealing properties, ensuring dependable operation without oil leakage, which improves the overall usability of the machine.
