Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CJ6310 |
| Feed opening | 630 x 1000 mm |
| Max feed size | 580 mm |
| CSS Range | 80 - 180 mm |
| Capacity(by hour) | 100 - 195 tph |
| Motor power | 75 kW |
| Dimensions | 3763 x 2280 x 2644 mm |
| Rotation speed of eccentric shaft | 250 r/min |
*Note: The processing capacity of the CJ6310 jaw crusher may vary with different materials and feeding sizes.
This small gravel aggregates production line built by Dingli has reached our expected hourly capacity.
The main equipment in 300tph aggregates production line in Liping Kaili Guizhou is PCZ1512 heavy hammer crusher vibrating feeder 3YK1860 upper vibrating screen*2. Though we have less equipment it has high finished materials quality.
We not only improve its capacity but adopt a lot of environmental protection measures. Such as watering the mining area and road hardening roads adopting closed bag deduster in crushing station.

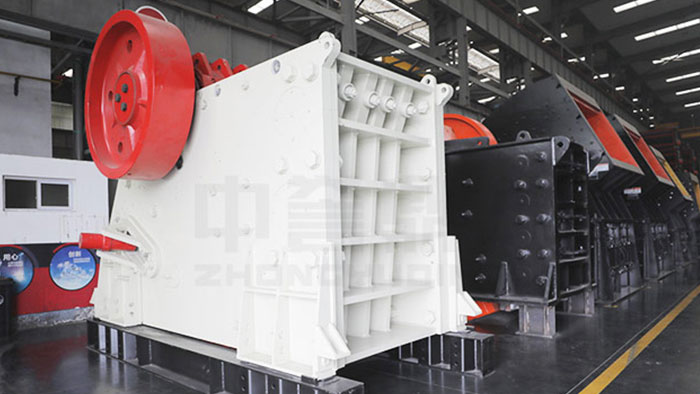

The CJ6310 Jaw Crusher is a compact and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
The CJ6310 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The CJ6310 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The CJ6310 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
