Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CJ8711 |
| Feed opening | 870 x 1100 mm |
| Max feed size | 720 mm |
| CSS Range | 85 - 220 mm |
| Capacity(by hour) | 130 - 360 t/h |
| Motor power | 110 kW |
| Dimensions | 4124 x 2480 x 3020 mm |
| Rotation speed of eccentric shaft | 250 r/min |
*Note: The processing capacity of the CJ8711 jaw crusher may vary with different materials and feeding sizes.
The above picture shows the production site of 1000tph aggregates production line of Tongxingyuan Building Material Company. The aligned belt conveyors are transporting aggregates in an orderly manner. The pulse bag filter independently dev
The project is under EPC general contract construction of Zhongyu and Denli, and tailor-made production line scheme for customers.
At the production site it is seen that several trucks are waiting to be loaded with material for transporting. The site sale situation is very hot. These customers are attracted by the high quality and large reserve of fine stone.

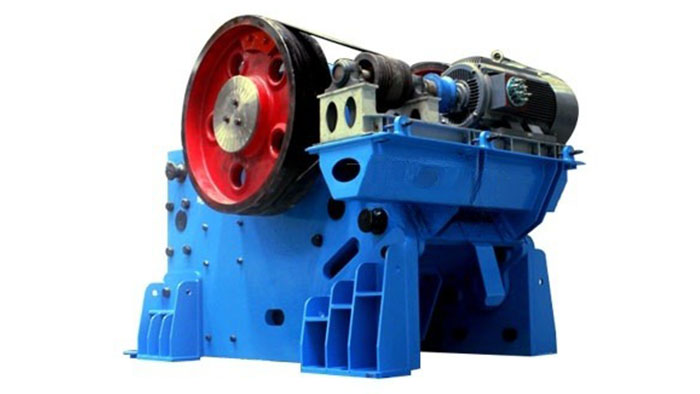

The CJ8711 Jaw Crusher is a high-capacity and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
The CJ8711 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.
The CJ8711 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The CJ8711 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
