Home>Specifications and models>jaw crushers
Request a quote

Product data

modelCJ125
Feed opening1250×950 mm
Max feed size760 mm
CSS Range100-250 mm
Capacity(by hour)200-840 tph
Motor power160 KW

*Note: The processing capacity of the CJ125 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

CJ96 jaw crusher

CJ96 jaw crusherCJ96

Nominal capacity80-450 tph

Max. feed size480 mm

Motor power90 KW

Live Chat

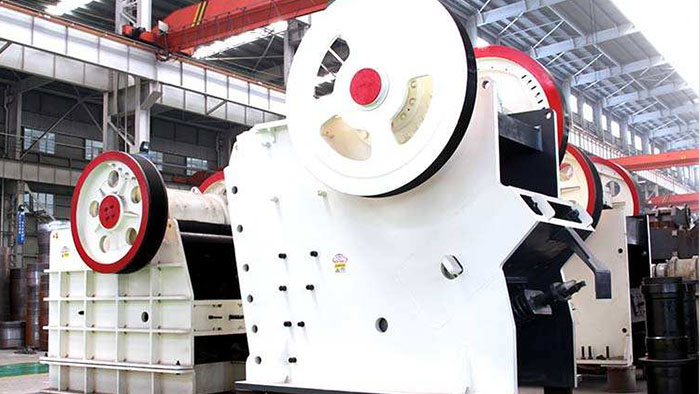

CJ160 jaw crusher

CJ160 jaw crusherCJ160

Nominal capacity300-1260 tph

Max. feed size960 mm

Motor power250 KW

Live Chat
CJ211 jaw crusher

CJ211 jaw crusherCJ211

Nominal capacity480-1,160mtph (529-1,279stph)

Max. feed size

Motor power90 kW (125 hp)

Live Chat

Case stories

1000TPH Cement Crushing Production Line

In this production sites we get to know all the crushing equipment was orderly installing by our professional technicians.

1000TPH Stone Plant in Hohhot Inner Mongolia

This production line is especially constructed for the building stone with wide application of finished material and optimized operation efficiency.

800-1200TPH Cement Crushing Production Line in Guixing

This is a crushing production line established by cement industry that can crush not only limestone but clay and gypsum with high efficiency full crushing and lower wear-resistance.

Additional product information

CJ125 Jaw Crusher: Maintenance Efficiency

Technical Specifications:

  • Model: CJ125
  • Max. Feeding Size: 1250×950 mm
  • Range of Discharging Port: 100-250 mm
  • Handling Capacity: 200-840 tph
  • Power: 160 KW

The CJ125 jaw crusher emphasizes maintenance efficiency, ensuring that operators can perform routine checks and repairs with minimal disruption. Its design considerations focus on accessibility and ease of maintenance.

  • Robust Construction: The use of cylindrical pins and bolted connections in the frame components enhances the machine's robustness and reliability.
  • Optimized Parameters: Improved motion parameters enable efficient crushing throughout the chamber, with a larger stroke and higher crushing ratio at the bottom.
  • Compact Design: The compact footprint of the CJ125 makes it a practical choice for both fixed and mobile applications.
  • Easy Access: Detachable design elements facilitate easier transportation and installation, particularly beneficial in confined spaces.
  • Long-lasting Bearings: The bearing design is optimized to extend service life, and standardized components help reduce the variety of spare parts.

This model is adept at handling materials like river pebbles, granite, basalt, iron ore, limestone, quartz, diabase, construction waste, iron ore, and gold.

Contact us

jaw crusher
CJ125 jaw crusher Technical documentation CJ125 jaw crusher Technical documentation
