Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CPE-1000 x 1200 |
| Feed opening | 1000 x 1200 mm |
| Max feed size | 850 mm |
| CSS Range | 195 - 265 mm |
| Capacity(by hour) | 315 - 342 t/h |
| Motor power | 132 kW |
| Weight | 51,000 Kg |
| Rotation speed of eccentric shaft | 200 r/min |
*Note: The processing capacity of the CPE-1000 x 1200 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity46 - 100 t/h
Max. feed size425 mm
Motor power55 kW
Live Chat
Nominal capacity
Max. feed size60 mm
Motor power110 kW
Live Chat
Nominal capacity280 - 750 tph
Max. feed size850 mm
Motor power132 - 160 kW
Live Chat
The civil engineering and process layout of this production line are both self-constructed by Xinxiang Dingli besides all the equipment selected are produced by Dingli.
The ZSJ dual rotor sand making machine independently projected and developed by Xinxiang Dingli has integrated the internally advanced technology in the global manufacturing industry and obtained many patent inventions.
50TPH Sand Production Line Layout Main Equipment Name Model Power(kw) Set Dual Rotor sand Maker ZSJ0808 2*55kw 1 Vitrating Screen 3YKZ2060 30kw 1 Sand Production Process After processing of primary crusher the crushed limestone is conveyed

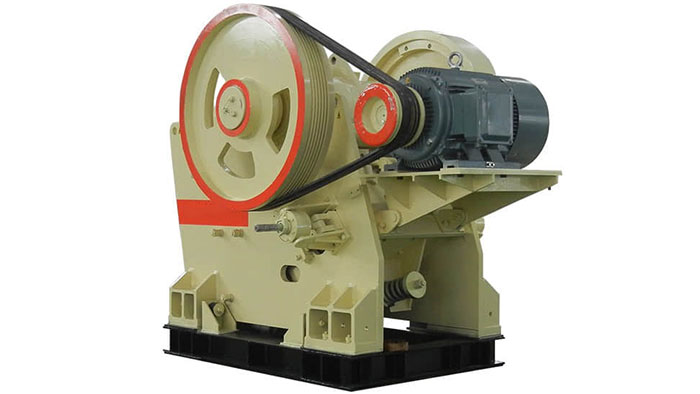

The CPE-1000 x 1200 Jaw Crusher is an ultimate performance model in the CPE Series Smart Jaw Crushers, designed for primary crushing in super-large operations. This crusher can handle feed sizes up to 850 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 320 MPa.
The CPE-1000 x 1200 Jaw Crusher has a production capacity of 315 to 342 tons per hour and is equipped with a 132 kW motor, ensuring efficient and stable operation. Its deep-cavity design maximizes the processing volume, and the frame is constructed using robust materials, providing higher strength and durability.
In addition, the CPE-1000 x 1200 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features enhance production efficiency and extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition. The crusher weighs 51000 kg, making it a robust solution for super-large operations.
Overall, the CPE-1000 x 1200 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in super-large operations.
