Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CPE-600 x 900 |
| Feed opening | 600 x 900 mm |
| Max feed size | 500 mm |
| CSS Range | 65 - 160 mm |
| Capacity(by hour) | 48 - 120 t/h |
| Motor power | 75 kW |
| Weight | 15,500 Kg |
| Rotation speed of eccentric shaft | 250 r/min |
*Note: The processing capacity of the CPE-600 x 900 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity300 - 800 t/h
Max. feed size1020 mm
Motor power180 kW
Live Chat
Nominal capacity5 - 21 t/h
Max. feed size210 mm
Motor power15 kW
Live Chat
Nominal capacity115 - 208 t/h
Max. feed size630 mm
Motor power110 kW
Live Chat
The main function of this production line is crushing limestone and dolomite.
In this production site all the equipment is orderly placed in there for different processes. And it can save the electric energy by using huge inertance of high place production line to convey materials to the relative process equipment.
Leiming built a new-type gravel production line on the basis of prior stone production line for eco-friendly production.

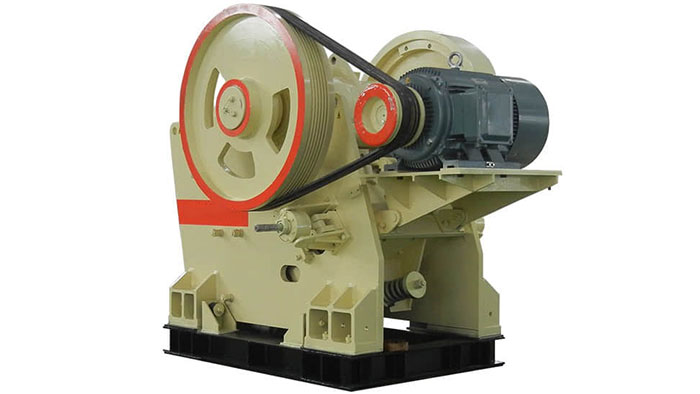

The CPE-600 x 900 Jaw Crusher is a high-capacity and efficient model in the CPE Series Smart Jaw Crushers, designed for primary crushing in large operations. This crusher can handle feed sizes up to 500 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 320 MPa.
The CPE-600 x 900 Jaw Crusher has a production capacity of 48 to 120 tons per hour and is equipped with a 75 kW motor, ensuring efficient and stable operation. Its deep-cavity design maximizes the processing volume, and the frame is constructed using robust materials, providing higher strength and durability.
In addition, the CPE-600 x 900 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features enhance production efficiency and extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition. The crusher weighs 15500 kg, making it a robust solution for large operations.
Overall, the CPE-600 x 900 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in large operations.
