Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CPE-750 x 1060 |
| Feed opening | 750 x 1060 mm |
| Max feed size | 630 mm |
| CSS Range | 80 - 140 mm |
| Capacity(by hour) | 115 - 208 t/h |
| Motor power | 110 kW |
| Weight | 28,000 Kg |
| Rotation speed of eccentric shaft | 250 r/min |
*Note: The processing capacity of the CPE-750 x 1060 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity8-26 t/h
Max. feed size120 mm
Motor power15 kW
Live Chat
Nominal capacity315 - 342 t/h
Max. feed size850 mm
Motor power132 kW
Live Chat
Nominal capacity50 - 112 t/h
Max. feed size500 mm
Motor power75 kW
Live Chat
This 500tph stone production line configured by Xinxiang Dingli in Pingliang Gansu mainly adopts PCZ1615 heavy hammer crusher with hourly capacity of 4200-500 ton ZG2038 vibrating feeder and several sets of our efficient vibrating screen.
In this production sites we get to know all the crushing equipment was orderly installing by our professional technicians.
500TPH Crushing & Screening Plant Pics

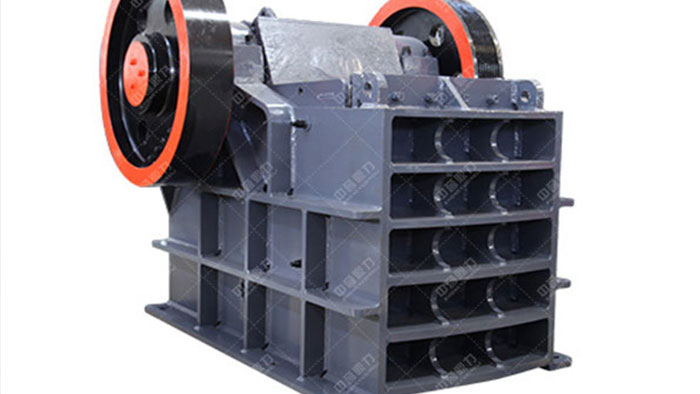

The CPE-750 x 1060 Jaw Crusher is a high-performance model in the CPE Series Smart Jaw Crushers, designed for primary crushing in super-large operations. This crusher can handle feed sizes up to 630 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 320 MPa.
The CPE-750 x 1060 Jaw Crusher has a production capacity of 115 to 208 tons per hour and is equipped with a 110 kW motor, ensuring efficient and stable operation. Its deep-cavity design maximizes the processing volume, and the frame is constructed using robust materials, providing higher strength and durability.
In addition, the CPE-750 x 1060 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features enhance production efficiency and extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition. The crusher weighs 28000 kg, making it a robust solution for super-large operations.
Overall, the CPE-750 x 1060 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in super-large operations.
