Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CPEX-250 x 1200 |
| Feed opening | 250 x 1200 mm |
| Max feed size | 210 mm |
| CSS Range | 25 - 60 mm |
| Capacity(by hour) | 20 - 60 t/h |
| Motor power | 37 kW |
| Weight | 7,700 Kg |
| Rotation speed of eccentric shaft | 330 r/min |
*Note: The processing capacity of the CPEX-250 x 1200 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity20 - 65 tph
Max. feed size210 mm
Motor power37 - 45 kW
Live Chat
Nominal capacity16 - 52 t/h
Max. feed size210 mm
Motor power30 kW
Live Chat
Nominal capacity15 - 50 tph
Max. feed size220 mm
Motor power30 kW
Live Chat
In this 200tph production line in Tengchong Yunnan it can produce 121305 stone and has a good selling in construction market especially 13 stone.
Its seen the crushing equipment is neatly arranged at the customers production site and the dust proof facility is installed in all the conveying equipment. The dust prevention measure is especially required in the junction of equipment.
This production line takes a leading role in the industry with relatively large hourly capacity. With the quality of crushed material meeting relative quality requirements of China such a line can provide qualified aggregates for highway railway.

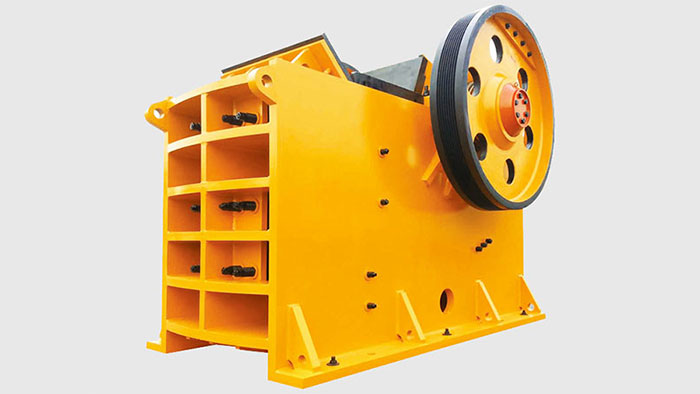

The CPEX-250 x 1200 Jaw Crusher is a high-capacity and efficient model in the CPE Series Smart Jaw Crushers, designed for primary crushing in large operations. This crusher can handle feed sizes up to 210 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 320 MPa.
The CPEX-250 x 1200 Jaw Crusher has a production capacity of 20 to 60 tons per hour and is equipped with a 37 kW motor, ensuring efficient and stable operation. Its deep-cavity design maximizes the processing volume, and the frame is constructed using robust materials, providing higher strength and durability.
In addition, the CPEX-250 x 1200 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features enhance production efficiency and extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition. The crusher weighs 7700 kg, making it a robust solution for large operations.
Overall, the CPEX-250 x 1200 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in large operations.
