Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | HJC110 |
| Feed opening | 800 x 1100 mm |
| Max feed size | 680 mm |
| CSS Range | 120 - 200 mm |
| Capacity(by hour) | 250 - 500 t/h |
| Motor power | 110 kW |
*Note: The processing capacity of the HJC110 jaw crusher may vary with different materials and feeding sizes.

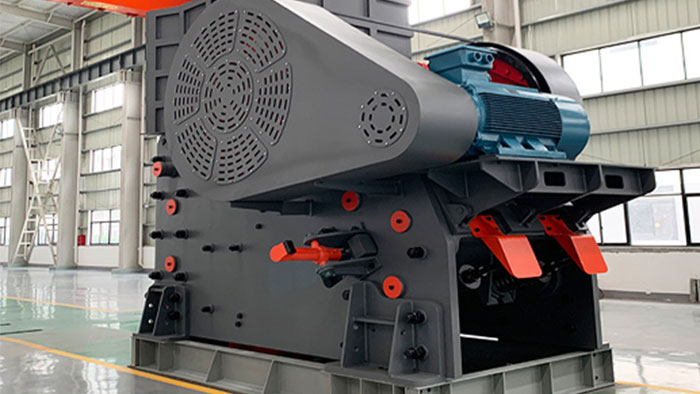

Equipment configuration: PCZ1512 heavy hammer crusher ZGC1250 vibrating feeder YK1860 vibrating screen*2 sets
As a large medium stone production line Xinxiang Dingli finally the design and configuration plan of 800t/h production line after combining local circumstance and material characteristics and all around inspection and research.
Basic configuration includes ZG2028 vibrating feeder PCZ1820 heavy hPC1220 hammer crusher 2YKZ3070 vibrating screen and relative dedusting equipment etc.

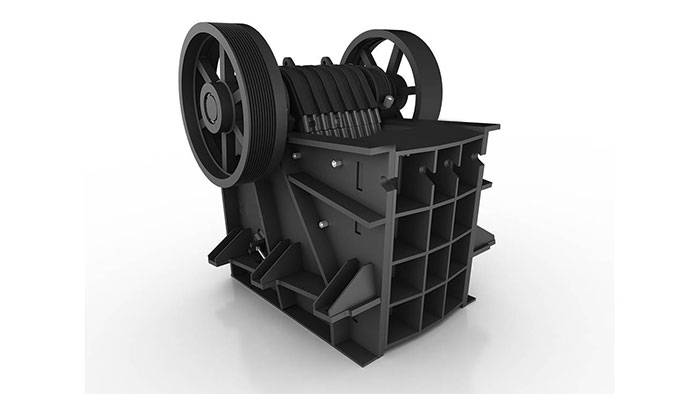

The HJC110 Jaw Crusher is a top-tier model in the HJC Series Jaw Crushers, known for its advanced design and maximum productivity. This crusher can handle a maximum feed size of 680 mm, making it suitable for primary crushing of large rock and hard ore materials.
The HJC110 Jaw Crusher features an inlet size of 800 x 1100 mm, capable of accepting a wide range of material inputs, enhancing operational flexibility. The adjustable outlet range of 120 - 200 mm provides users with precise control options to ensure the final product meets specific application requirements.
This crusher has a production capacity of 250 - 500 t/h, suitable for large-scale operations. Equipped with a 110 kW motor, it ensures efficient power output while considering energy efficiency, achieving both economic and environmental goals.
In terms of design, the HJC110 Jaw Crusher features a heavy-duty moving jaw assembly including high-quality cast steel components, a heavy eccentric shaft, four large self-aligning roller bearings, and a labyrinth seal structure. These components work together to ensure reliable operation under extreme conditions.
Additionally, the vibration damping installation design effectively absorbs peak loads from equipment vibrations, reducing noise pollution and minimizing impact on the foundation, thus extending the equipment's service life.
