Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | HJC120 |
| Feed opening | 950 x 1200 mm |
| Max feed size | 820 mm |
| CSS Range | 140 - 220 mm |
| Capacity(by hour) | 350 to 650 t/h |
| Motor power | 160 kW |
*Note: The processing capacity of the HJC120 jaw crusher may vary with different materials and feeding sizes.
The civil engineering and process layout of this production line are both self-constructed by Xinxiang Dingli besides all the equipment selected are produced by Dingli.
The raw materials can be exploited in the place near production site which saves a lot of transport cost. All the equipment manufactured by us can right meet the requirements of the customer. With reasonable configuration such production
In this stone production line it is easy to carry out maintenance on the devices for example the hammer crusher can be opened by hydraulic pressure in order to repair and maintain the hammerhead without using external tools.

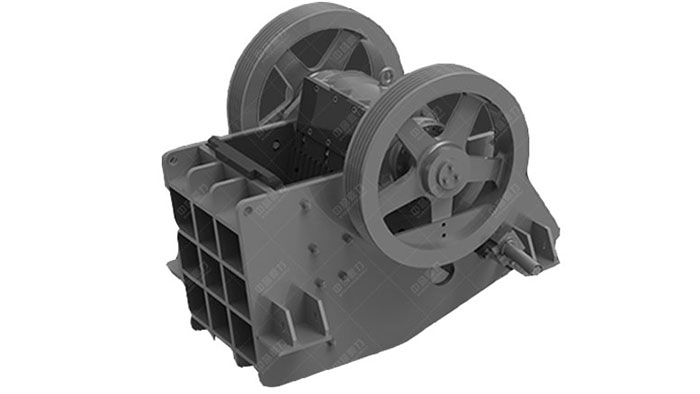

The HJC120 Jaw Crusher is a high-performance model in the HJC Series Jaw Crushers, designed to handle ultra-large rock and extremely hard ore materials. With a maximum feed size of 820 mm, it is an excellent choice for primary crushing applications.
The HJC120 Jaw Crusher has an inlet size of 950 x 1200 mm and an adjustable outlet range of 140 - 220 mm, providing operators with the flexibility to adjust the final product size to meet specific requirements. With a production capacity ranging from 350 to 650 t/h, this crusher is ideal for large-scale operations.
It is equipped with a 160 kW motor, ensuring efficient energy utilization and reduced operating costs. To enhance stability and longevity, the HJC120 Jaw Crusher employs an integral cast steel bearing housing design, which ensures perfect alignment between the bearing housing and the frame, avoiding radial loads on the bearing bracket that are common with traditional split bearing housings.
Additionally, the integrated protective transmission unit simplifies installation and allows for adjustable V-belt tension, effectively protecting the transmission components and extending the equipment's service life.
