Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher

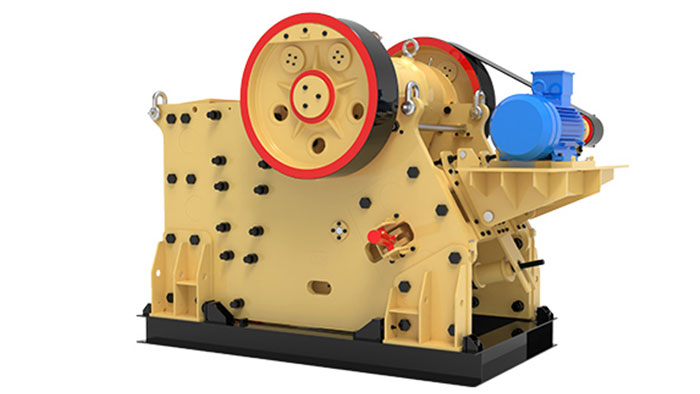

| model | HPE600 x 900 |
| Feed opening | 600 x 900 mm |
| Max feed size | 480 mm |
| CSS Range | 65 - 160 mm |
| Capacity(by hour) | 90 - 180 tph |
| Motor power | 55 - 75 kW |
| Dimensions | 2290 x 2206 x 2370 mm |
*Note: The processing capacity of the HPE600 x 900 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity64 - 112 tph
Max. feed size500 mm
Motor power75 kW
Live Chat
Nominal capacity40 - 110 tph
Max. feed size425 mm
Motor power45 - 55 kW
Live ChatNominal capacity90 - 180 tph
Max. feed size480 mm
Motor power55 - 75 kW
Live Chat
It is seen this production line adopts centralized construction by using the dry sand making equipment of Zhongyu Dingli. In the sign board on the production site it clearly indicates the components of the equipment and operation process.
This gravel aggregates production line is built with local large mining as the support. After entering into the operation this large-sacle stone crusher plant will produce the gravel aggregate for meeting local market need.
It is seen at the production site the large stone with particle size not exceeding 1.6 is directly crushed by the crusher and then the finished material in line with concrete preparation is screened by the vibrating screen.
For businesses seeking reliable and high-performance crushing equipment, the HPE600 x 900 Jaw Crusher represents a dependable option. Capable of handling materials up to 480 mm in size, it can produce particles ranging from 65 - 160 mm, suitable for further processing steps in industries like metallurgy, mining, construction, and beyond. As a crucial component in any production line, the HPE600 x 900 Jaw Crusher offers consistent material processing capabilities.
Designed with flexibility in mind, the HPE600 x 900 Jaw Crusher is capable of accommodating the specific requirements of different users. With a single-machine capacity of up to 180 tons per hour, it is well-suited for large-scale production tasks. Additionally, the simplified structure of the HPE600 x 900 Jaw Crusher facilitates routine inspections and maintenance, ensuring the machine remains in optimal operating condition.
