Product data

modelJ65
Feed opening1200 x 1600 mm
Max feed size1000 mm
CSS Range150 - 270 mm
Capacity(by hour)550 - 1100 tph
Motor power250 kW
Weight71,250 kg
Rotation speed of eccentric shaft220 rpm

*Note: The processing capacity of the J65 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

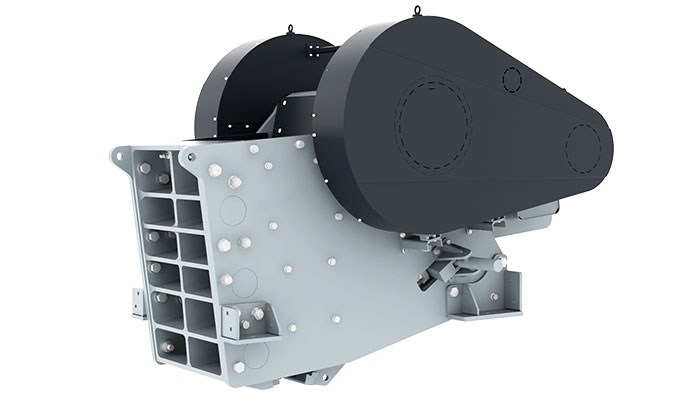

J65 jaw crusher

J65 jaw crusherJ65

Nominal capacity550 - 1100 tph

Max. feed size1000 mm

Motor power250 kW

Live Chat
J40 jaw crusher

J40 jaw crusherJ40

Nominal capacity110 - 360 tph

Max. feed size500 mm

Motor power75 kW

Live Chat
J50 jaw crusher

J50 jaw crusherJ50

Nominal capacity270 - 850 tph

Max. feed size800 mm

Motor power160 kW

Live Chat

Case stories

500TPH Limestone Crushing Project in Sichuan

From the production site different kinds of stones were conveyed from various v-belts that are convenient in dividing materials to apply into different production program.

300TPH Stone Production Line in Handan Hebei

Basic configuration includes ZG1238 vibrating feeder PCZ1512 heavy hammer crusher 22YK2060 vibrating screen*2 sets DMCA pulse deduster*5 sets etc.

400TPH Stone Production Line of Zhonglei Company

The operating process of this 400tph production line is crushed by PCZ heavy hammer crusher shaped by PCX shaping hammer crusher graded by vibrating screen and then sent qualified stone into finished material stockpile.

Additional product information

J65 Jaw Crusher: Preferred for Large-Scale Material Handling

Performance Testing:

  • Durability Testing: Rigorous durability testing has proven that the equipment can withstand harsh conditions over extended periods.
  • Efficiency Evaluation: In actual production, the equipment demonstrates superior performance compared to similar products.
  • Energy Consumption Analysis: Tests show that the energy consumption is below average when compared to similar processing capacities.
  • Noise Control: Effective noise control measures have been implemented, resulting in quieter working environments.

Technical Specifications:

  • Feed Opening: 1200 x 1600 mm
  • Maximum Feed Size: ≤1000 mm
  • Discharge Opening Range: 150-270 mm
  • Speed: 220 rpm
  • Capacity: 550-1100 t/h
  • Motor Power: 250 kW
  • Machine Weight: 71,250 kg
