Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | J6S125 |
| Feed opening | 950 x 1250 mm |
| Max feed size | 800 mm |
| CSS Range | 100 - 250 mm |
| Capacity(by hour) | 230 - 760 t/h |
| Motor power | 160 kW |
| Dimensions | 4100 x 2800 x 3440 mm |
| Rotation speed of eccentric shaft | 220 rpm |
*Note: The processing capacity of the J6S125 jaw crusher may vary with different materials and feeding sizes.
fully automated production automatic loading at the bottom of the vehicle automatic sealing process simplification high technological content dust-free environmental protection high efficiency saving forklift fuel labor and other expenses.
As a large limestone production province among China Jiangxi has been the major market of Xinxiang Zhongyu Dingli Mining Equipment Industry. We have built an 800-1000t/h stone production line for Pingxiang with our two hammer crusher.
The 200t/h stone production line configuration is PCZ1510 heavy hammer crusher ZG0938 vibrating feeder 2YK1560 vibrating screen*2 sets.

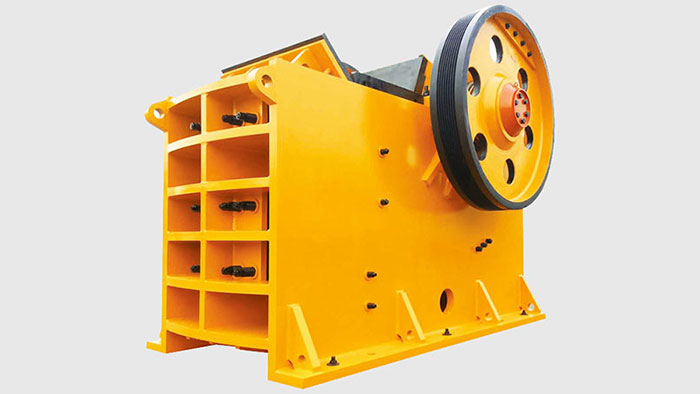

J6S125 European Jaw Crusher: Efficient Crushing, Flexible Adjustment
J6S125 European Jaw Crusher is an efficient device launched by Zhongji Industry to meet large-scale crushing needs. This model has a feeding size of 950 x 1250 mm, capable of handling materials with a maximum input size of 800 mm. The output size can be adjusted between 100 - 250 mm, with a capacity ranging from 230 - 760 t/h. It operates at a power of 160 kW, a rotational speed of 220 rpm, and has an overall dimension of 4100 x 2800 x 3440 mm.
The J6S125 European Jaw Crusher employs high-quality cast steel moving jaw assembly, ensuring the stability and durability of the equipment. The symmetrical “V”-shaped cavity design, combined with a large inclination angle, large stroke, and reasonable rotational speed, not only increases feed particle size but also boosts production and reduces jaw plate wear. The hydraulic wedge-type discharge opening adjustment device provides quick and accurate discharge opening adjustments, enhancing the intelligence level of the equipment.
The modular design of the entire machine makes it easy to disassemble and transport, adapting to various working environments. Whether used in mining, construction material processing, or urban construction waste recycling, the J6S125 European Jaw Crusher provides efficient and reliable crushing solutions.
