Product data

modelJC1200M
Feed opening1200 x 950 mm
Max feed size850 mm
CSS Range100 - 250 mm
Capacity(by hour)220 - 720 tph
Motor power160 kW
Weight31,980 kg
Rotation speed of eccentric shaft220 rpm

*Note: The processing capacity of the JC1200M jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

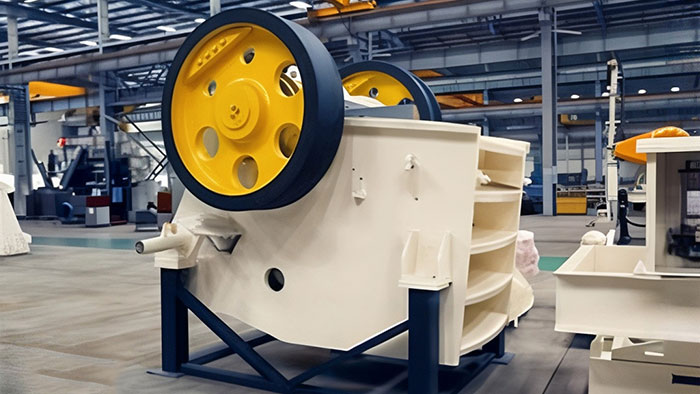

JC555 jaw crusher

JC555 jaw crusherJC555

Nominal capacity385-945 tph

Max. feed size900 mm

Motor power160-200 KW

Live Chat
JC160 jaw crusher

JC160 jaw crusherJC160

Nominal capacity550-930 tph

Max. feed size1020 mm

Motor power250 KW

Live Chat
JC779 jaw crusher

JC779 jaw crusherJC779

Nominal capacity700-1500 tph

Max. feed size1250 mm

Motor power335-400 KW

Live Chat

Case stories

200TPH Aggregates Production Line in Ningxia

In this hard rock crushing sites Xinxiang Dingli after-sale servicers are checking machine problems and giving solution to ensure a quick production. Now there are about several hundred after-sale servicers all over the country to better h

1200TPH Stone Production Line in Huzhou Zhejiang

This 1400tph production line is configured with 3 sets of vibrating screen running side by side the efficiency of which is 50% higher than that of combined screening of two screens.

5000 Ton/Day Fine Gravel Production Line for Sale

This gravel aggregates production line is built with local large mining as the support. After entering into the operation this large-sacle stone crusher plant will produce the gravel aggregate for meeting local market need.

Additional product information

JC1200M Jaw Crusher: Advanced Crushing Technology for High Volume

Product Overview

The JC1200M jaw crusher is a cutting-edge crushing machine designed to handle high-volume applications requiring efficient crushing of abrasive materials. Its advanced design ensures maximum throughput and crushing ratio.

Technical Specifications

  • Feed Opening Length: 1200 mm
  • Feed Opening Width: 950 mm
  • Maximum Feed Size: 850 mm
  • Adjustable Discharge Opening Range: 100-250 mm
  • Shaft Speed: 220 rpm
  • Motor Power: 160 kW
  • Weight: 31,980 kg
  • Capacity: 220-720 t/h

Application Features

  • Symmetrical Crushing Chamber: Enhances feeding efficiency and throughput.
  • Mechanical Wedge Adjustment: Easier and safer adjustment of the discharge opening.
  • Compact Design: Integrated motor base reduces space requirement and simplifies installation.

Key Advantages

  • Heavy-Duty Components: Utilizes high-quality cast steel and large, forged eccentric shaft for increased reliability.
  • Longevity: Cheek plates protect the moving jaw from wear and tear, extending the lifespan.
  • Smooth Operation: Optimized crushing angle ensures efficient crushing and smooth passage of material.
