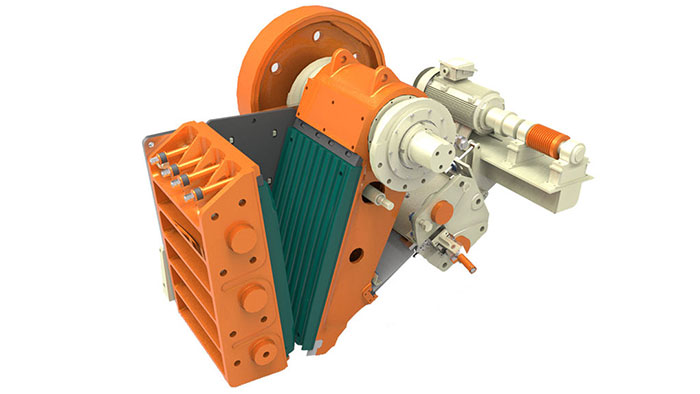

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JC442 |
| Feed opening | 700×1060 mm |
| Max feed size | 650 mm |
| CSS Range | 70-200 mm |
| Capacity(by hour) | 150-610 tph |
| Motor power | 90-110 KW |
*Note: The processing capacity of the JC442 jaw crusher may vary with different materials and feeding sizes.
The main equipment in 300tph aggregates production line in Liping Kaili Guizhou is PCZ1512 heavy hammer crusher vibrating feeder 3YK1860 upper vibrating screen*2. Though we have less equipment it has high finished materials quality.
This production line has a compact design that various finished materials can be transported into the needed place by trucks directly.
As to equipment selection and layout it is a big advantage with the two production lines respectively equipped with the host PCZ1820 running side by side since when one line is under maintenance the other one can continue to operate.
Capacity(by hour)：150-610 tph
Motor power：90-110 kW
| Crusher throughput capacity,scalped feed material | Crusher throughput capacity,Non-scalped feed material | |
|---|---|---|
| Dischaging Size (mm) | Capacity (t/h) | |
| 70 | 150-185 | 170-215 |
| 80 | 165-215 | 200-260 |
| 90 | 190-235 | 225-285 |
| 100 | 205-265 | 245-320 |
| 125 | 255-325 | 305-395 |
| 150 | 305-385 | 360-470 |
| 175 | 355-450 | 415-520 |
| 200 | 395-500 | 465-610 |
