Home>Specifications and models>jaw crushers
Request a quote

Product data

modelJC140
Feed opening1400×1070 mm
Max feed size910 mm
CSS Range360-690 mm
Capacity(by hour)425-725 tph
Motor power200 KW

*Note: The processing capacity of the JC140 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

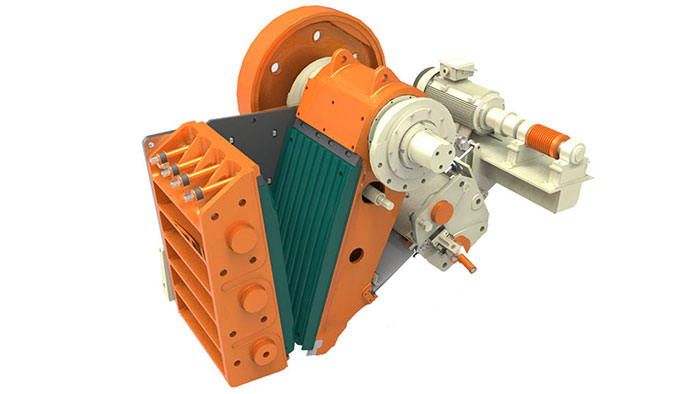

JC90 jaw crusher

JC90 jaw crusherJC90

Nominal capacity105-275 tph

Max. feed size530 mm

Motor power90 KW

Live Chat
JC110 jaw crusher

JC110 jaw crusherJC110

Nominal capacity200-460 tph

Max. feed size720 mm

Motor power110 / 132 KW

Live Chat
JC116 jaw crusher

JC116 jaw crusherJC116

Nominal capacity180 - 410 tph

Max. feed size640 mm

Motor power110 KW

Live Chat

Case stories

1600TPH Bluestone Production Line in Sichuan

In the production site the material shape can be effectively controlled by each process that has better shape than natural sand. It has a bright future with meeting the demand of sand size gradation and crushing index.

600TPH Stone Crusher Plant in Nanchang Jiangxi

This 600t/h production line has the basic configuration of PCZ1615 heavy hammer crusher PC1213 hammer crusher ZG1538 feeder 3YKZ2670 vibrating screen*2 sets 2YKZ2670 vibrating screen*2 sets.

300TPH River Pebble Crusher Plant in Chongqing

Relying on local river pebble resource the customer invests such a 300tph stone crushing line. Our KPC1313 hard rock crusher adopts the rotor with two rows of hammers so it can fully crush the materials. Hydraulic cylinder pulls the the s

Additional product information

JC140 Jaw Crusher

Specifications:

  • Feed Opening Size (mm): 1400×1070
  • Maximum Feed Size (mm): 910
  • Discharge Opening Sizes (mm)/Capacity (t/h):
    • 360: 425
    • 425: 490
    • 490: 555
    • 555: 625
    • 625: 690
    • 690: 725
  • Motor Power (kw): 200

Product Features:

  • High Crushing Capacity: The JC140 jaw crusher has a powerful crushing capacity suitable for large-scale crushing operations.
  • Optimized Design: The crushing cavity is rationally designed to improve crushing efficiency.
  • Energy-Saving Design: Optimized motion characteristics reduce energy loss during operation.
  • Convenient Maintenance: Very easy replacement of wear parts such as jaw plates.
  • Adjustable Discharge Opening: Simple adjustments to meet production needs.

Contact us

jaw crusher
JC140 jaw crusher Technical documentation JC140 jaw crusher Technical documentation
